Ecocell

Natural Gravity Convection Ovens

Ecocell gravity convection produce gentle air flow with low vibration and even temperature distribution throughout the chamber. The Ecocell is an ideal solution for carefully drying sensitive materials, including light powders and compounds, while also being suitable for industrial materials testing applications, warming bedding and blankets, and sterilizing laboratory glassware and media.

Model Specifications

Ecocell 22

Working Temperatures

Ambient + 5°C up to 250°C

300°C max temp. option available

Heat Technology

Natural gravity convection

Chamber Volume

22L / (0.8 ft³)

Interior (wxdxh)

9.4″ x 13.8″ x 11.8″
240mm x 350mm x 300mm

Exterior (wxdxh)

16″ x 22″ x 24″
406mm x 560mm x 610mm

Weight

Net: 68.3lbs / 31kg

# of shelf guides
(2.4" minimum spacing)

4 guides / 2 shelves included

Useable Shelf Area

7.3″ x 10.4″
185mm x 265mm

Max Load Per Shelf

22lbs / 10kg

Control System

ECO standard microprocessor controller with fuzzy logic and 3″ digital LCD display

Electrical

115V 50/60Hz

Regulatory Labels

CE, UL, CSA listed

Ecocell 55

Working Temperatures

Ambient + 5°C up to 250°C

300°C max temp. option available

Heat Technology

Natural gravity convection

Chamber Volume

55L / (2 ft³)

Interior (wxdxh)

15.7″ x 14.6″ x 13.8″
400mm x 370mm x 350mm

Exterior (wxdxh)

24.4″ x 26.8″ x 26.8″
620mm x 680mm x 680mm

Weight

Net: 121.3lbs / 55kg

# of shelf guides
(2.8" minimum spacing)

4 guides / 2 shelves included

Useable Shelf Area

15″ x 13.2″
380mm x 335mm

Max Load Per Shelf

44.1lbs / 20kg

Control System

ECO standard microprocessor controller with fuzzy logic and 3″ digital LCD display

Electrical

115V 50/60Hz

Regulatory Labels

CE, UL, CSA listed

Ecocell 111

Working Temperatures

Ambient + 5°C up to 250°C

300°C max temp. option available

Heat Technology

Natural gravity convection

Chamber Volume

111L / (4 ft³)

Interior (wxdxh)

21.3″ x 14.6″ x 20.9″
540mm x 370mm x 530mm

Exterior (wxdxh)

29.9″ x 26.8″ x 33.9″
760mm x 680mm x 860mm

Weight

Net: 165.3lbs / 75kg

# of shelf guides
(2.8" minimum spacing)

4 guides / 2 shelves included

Useable Shelf Area

20.5″ x 13.2″
520mm x 335mm

Max Load Per Shelf

44.1lbs / 20kg

Control System

ECO standard microprocessor controller with fuzzy logic and 3″ digital LCD display

Electrical

115V 50/60Hz

Regulatory Labels

CE, UL, CSA listed

Ecocell 222

Working Temperatures

Ambient + 5°C up to 250°C

300°C max temp. option available

Heat Technology

Natural gravity convection

Chamber Volume

222L / (8 ft³)

Interior (wxdxh)

21.3″ x 20.5″ x 29.9″
540mm x 520mm x 760mm

Exterior (wxdxh)

29.9″ x 32.7″ x 42.9″
760mm x 830mm x 1090mm

Weight

Net: 220.5lbs / 100kg

# of shelf guides
(2.8" minimum spacing)

10 guides / 2 shelves included

Useable Shelf Area

20.5″ x 19.1″
520mm x 485mm

Max Load Per Shelf

66.1lbs / 30kg

Control Sytem

ECO standard microprocessor controller with fuzzy logic and 3″ digital LCD display

Electrical

115V 50/60Hz
230V 50/60Hz

Regulatory Labels

CE, UL, CSA listed

Ecocell 404

Working Temperatures

Ambient + 5°C up to 250°C

300°C max temp. option available

Heat Technology

Natural gravity convection

Chamber Volume

404L / (14.3 ft³)

Interior (wxdxh)

21.3″ x 20.5″ x 55.7″
540mm x 520mm x 1415mm

Exterior (wxdxh)

29.9″ x 31.1″ x 75.2″
760mm x 790mm x 1910mm

Weight

Net: 330.7lbs / 150kg

# of shelf guides
(2.8" minimum spacing)

19 guides / 2 shelves included

Useable Shelf Area

20.5″ x 19.1″
520mm x 485mm

Max Load Per Shelf

66.1lbs / 30kg

Control System

ECO standard microprocessor controller with fuzzy logic and 3″ digital LCD display

Electrical

230V 50/60Hz

Regulatory Labels

CE, UL, CSA listed

Ecocell 707

Working Temperatures

Ambient + 5°C up to 250°C

300°C max temp. option available

Heat Technology

Natural gravity convection

Chamber Volume

707L / (25 ft³)

Interior (wxdxh)

37″ x 20.5″ x 55.7″
940mm x 520mm x 1415

Exterior (wxdxh)

45.7″ x 31.1″ x 75.2″
1160mm x 790mm x 1910mm

Weight

Net: 474lbs / 215kg

# of shelf guides
(2.8" minimum spacing)

19 guides / 2 shelves included

Useable Shelf Area

36.2″ x 19.1″
920mm x 485mm

Max Load Per Shelf

110.2lbs / 50kgs

Control System

ECO standard microprocessor controller with fuzzy logic and 3″ digital LCD display

Electrical

230V 50/60Hz

Regulatory Labels

CE, UL, CSA listed

Chamber Construction

Pharmaceutical-Grade Stainless Steel

Ecocell natural gravity convection ovens are constructed with a pharmaceutical-grade AISI 304 stainless steel chamber packed with 5 layers of insulation for improved durability, temperature uniformity, and operating efficiency. The inner chamber is seamless with rounded corners and fully removable for easier cleaning and sterilization. The chamber door is equipped with a patented 4-point closing system that seals the door to the chamber gasket and enables hands-free opening and closing.

AISI 304 stainless steel chamber

Removable inner chamber with seamless, rounded corner design for easier cleaning and sterilization.

Shelf brackets that do not penetrate the chamber walls – brackets are molded into the inner chamber walls 2.8″ apart.

4-point closing system that seals the door to the chamber gasket – automatic or key door lock options availabe, door sensor and alarm option available.

Double wall chamber construction with 5 layers of insulation for more uniform internal chamber conditions.

(2″) 50 mm stainless steel port – (1″) 25mm, (2″) 50mm, (4″) 100mm access port options available.

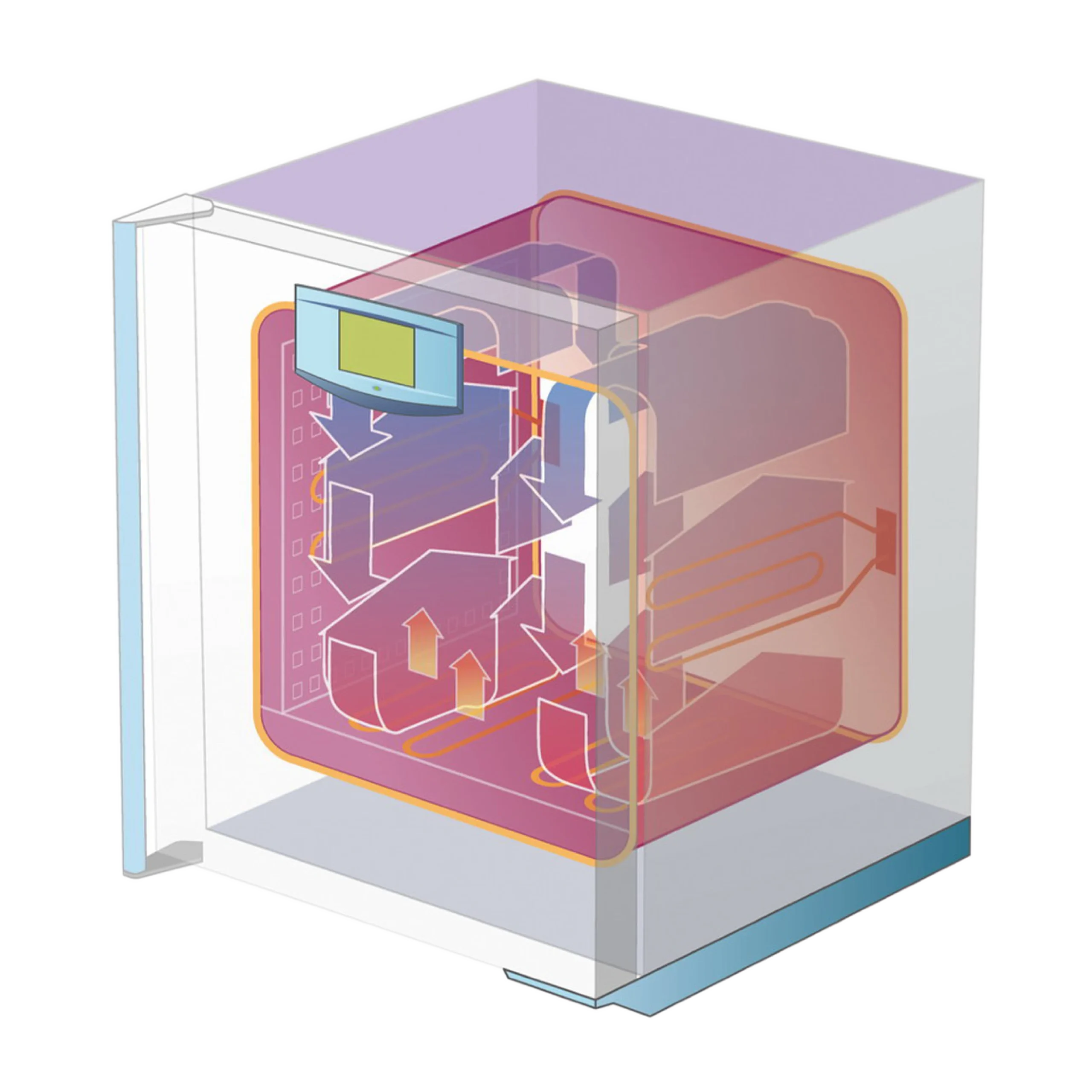

Heat Technology

Natural Gravity Convection

With nearly undetectable noise and vibration, the natural gravity convection system produces gentle airflow with even temperature uniformity throughout the chamber. Fanless operation reduces particle movement, preventing sample contamination, and significantly reduces power consumption.

Control System

Precise & Automated Control of Cycle Parameters

As standard, BMT USA devices are equipped with the ECO digital controller with the option to upgrade to the advanced EVO controller for expanded functionality and features. Both controllers employ fuzzy logic algorithms to evaluate cycle data in real-time and continuously adjust input values to maintain optimal chamber conditions. This allows for rapid heating and cooling while safeguarding against overshooting the temperature setpoint, protecting the load, ensuring the accuracy of results, and reducing cycle durations, recovery times, and power consumption.

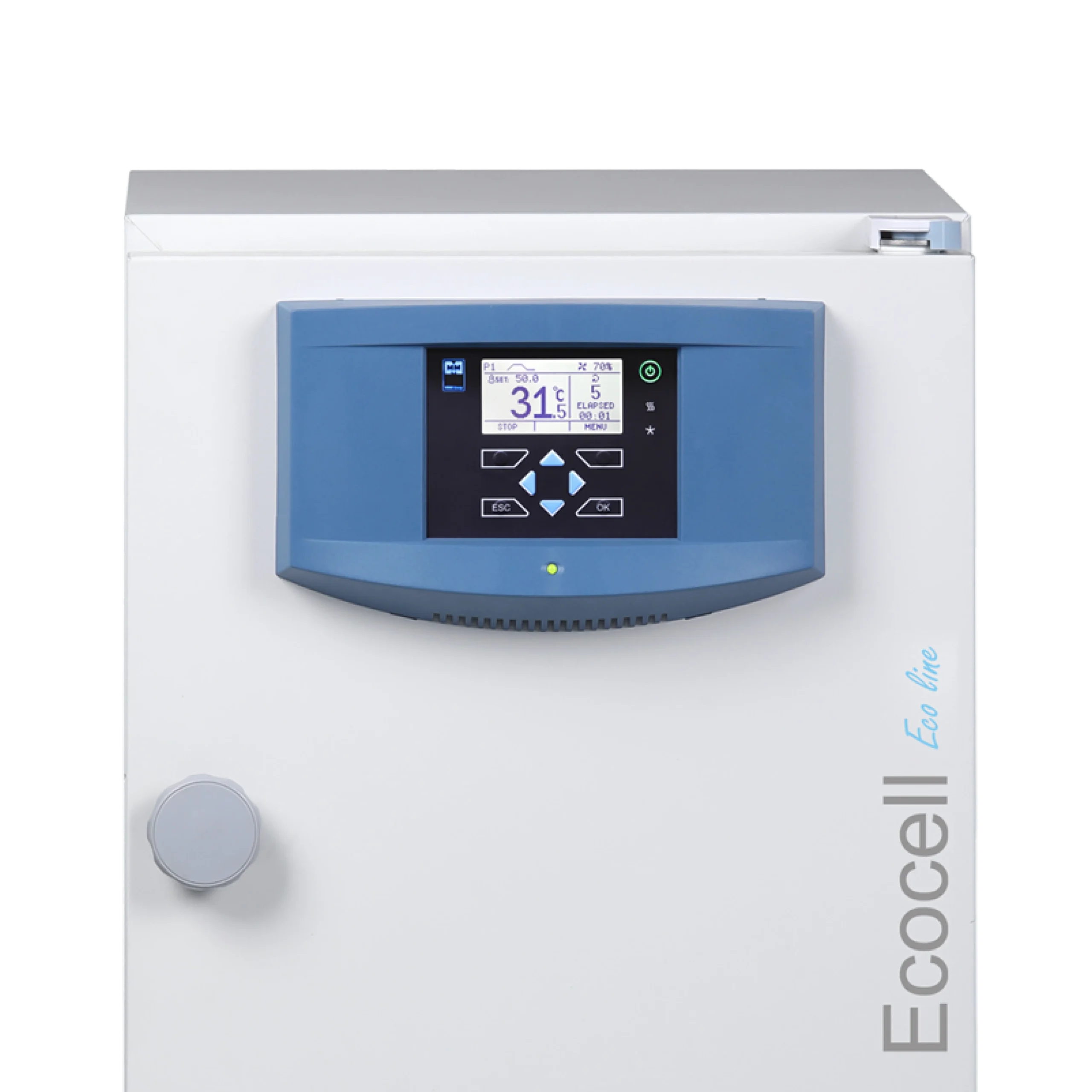

ECO

Standard Digital Controller

3″ LCD display

Fuzzy logic enabled microprocessor

9 programs / 2 segments each for varying loads and parameters up to 99 cycles

Real-time programming & cycling – optional temperature ramping settings

Optional Ethernet port

Delayed heating start & stop function

Digital safety thermostat

Acoustic and digital alarms

Optional integrated data logger for temperature measurement and recording

Constant monitoring of chamber conditions

USB & RS 232 port

Keypad lock

Optional Equipment

Shelving

Stainless steel perforated shelf

Stainless steel grated wire shelf

Construction

Automatic key and door lock

316L stainless steel chamber

Waterproof interior electrical socket 115V or 230V

Adjustable feet or casters with smooth travel and extendable leveling feet

Interior light – heat resistant with mechanical switch or an electronic switch that is automatically activated when the door opens

Door sensor and alarm

HEPA filter for air inlet

1” (25mm) / 2” (50mm) / 4” (100mm) access port

Window with 3 layers of insulating glass for observation of samples inside the chamber

Rolling cart with casters (swiveling/locking and swiveling/leveling) for 22, 55, 111 models

AISI 304 stainless steel exterior

PT 100 flexible sensor

Stainless stacking frame for model 111 & 222

Exhaust port extension for connection to external exhaust system

Durocell option: Interpon coated chamber for protection against corrosive substances

Functiontality

ECO plus: add 6 programs segments for a total of 8 segments and 9 programs

Oxygen control – 1% up to 19%

Inert Gas or aeration connection

Lighting control, UV-Vis

External printer

Ethernet port

Compliance

IQ/OQ protocols with 9pt. or 27pt. temperature mapping – DIN 12880

Region specific electrical plug

Warmcomm software – FDA CFR 12 Part 11 compliant

Building management monitoring system contacts (24v, 1A)
