Friocell EVO ICH

ICH Q1B-Compliant Photostability Chambers

Friocell EVO photostability chambers support pharmaceutical and food and beverage light-exposure testing with precise temperature control and configurable UV-Vis lighting for ICH Q1B studies. Designed for accurate, repeatable performance, the Friocell EVO helps teams assess product and packaging stability while supporting shelf life and regulatory requirements.

Repeatable

ICH Q1B-compliant lighting, patented forced-air convection, and advanced controls work together to maintain uniform chamber conditions for consistent, repeatable photostability testing.

Flexible

Adjustable lighting options and storage for up to 100 programs with 100 segments each support a wide range of products, packaging, and exposure profiles.

Smart

Microprocessor controls with Fuzzy Logic continuously adjust chamber inputs in real time to maintain stable conditions without overshoot.

Compliant

Designed for ICH Q1B photostability testing with precise light exposure control. Optional 21 CFR Part 11-compliant Warmcomm software protects data integrity and helps maintain audit readiness.

Technical Specifications

Heat Technology:

Patented forced air convection system

Temperature Range:

0°C — 100°C

Temperature Accuracy:

±0.5°C

Temperature Uniformity:

±0.4°C

Electrical:

230V 50/60Hz

Refrigerant:

R 134a

Regulatory Labels:

CE, UL, CSA listed

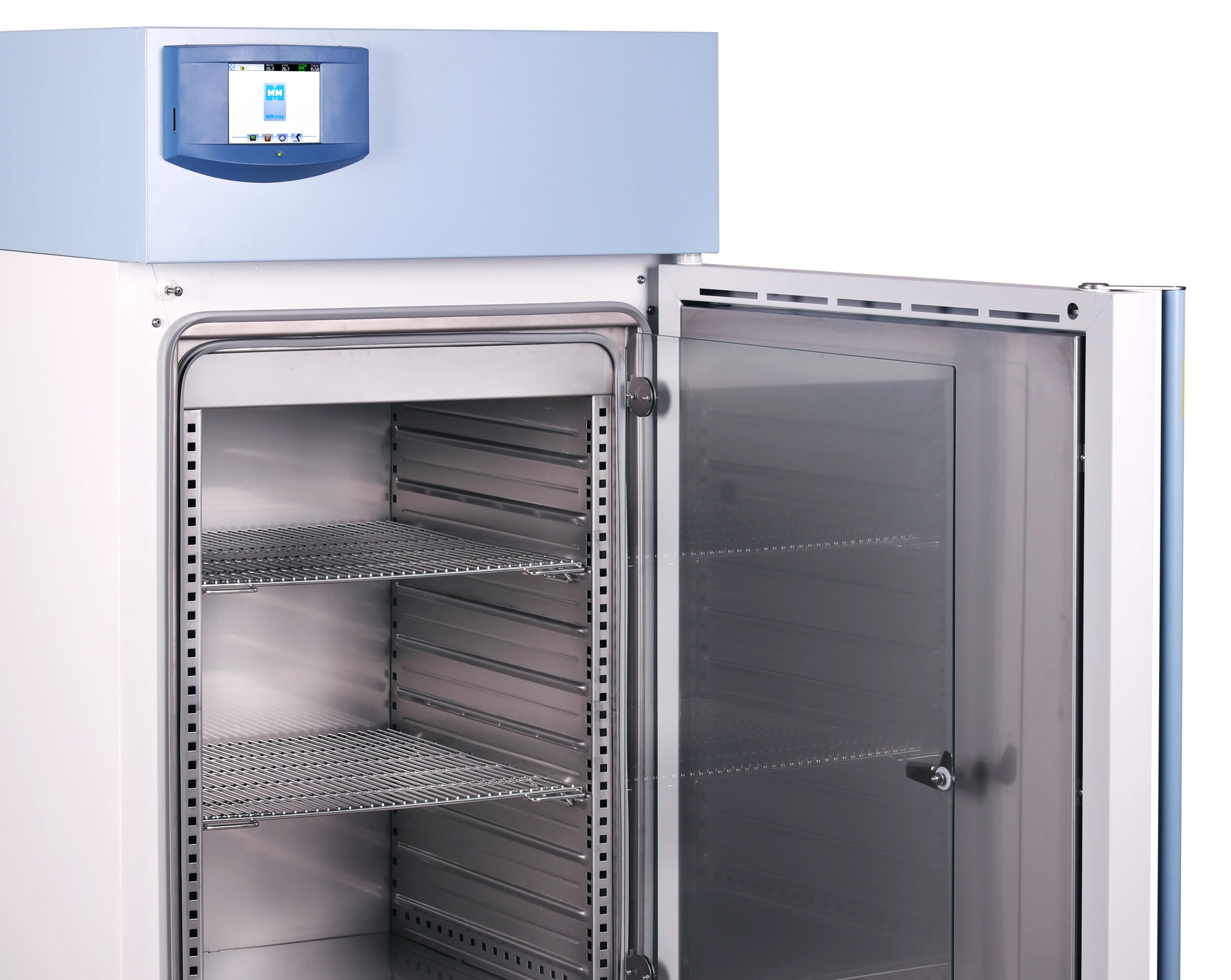

Built for Stable Performance

Durable chamber construction designed to protect study conditions and support long-term reliability.

Friocell EVO photostability chambers are engineered for regulated pharmaceutical and laboratory environments where chamber construction directly affects performance, cleanliness, and long-term reliability. With a pharmaceutical-grade AISI 304 stainless steel interior and five layers of insulation, the Friocell EVO is built to deliver durability, temperature uniformity, and efficient operation under demanding daily use.

Seamless 304 stainless steel chamber with rounded corners to simplify cleaning.

Fully removable inner chamber walls improves access for cleaning and maintenance.

Molded shelving brackets in the chamber walls spaced 2.8″ apart.

4-point door latch system securely seals the door to the chamber gasket.

Five layers of insulation to efficiently maintain chamber conditions.

(2″) 50mm stainless steel port – (1″) 25mm, (2″) 50mm, (4″) 100mm port options available.

Inner glass door allows sample viewing without disrupting chamber conditions.

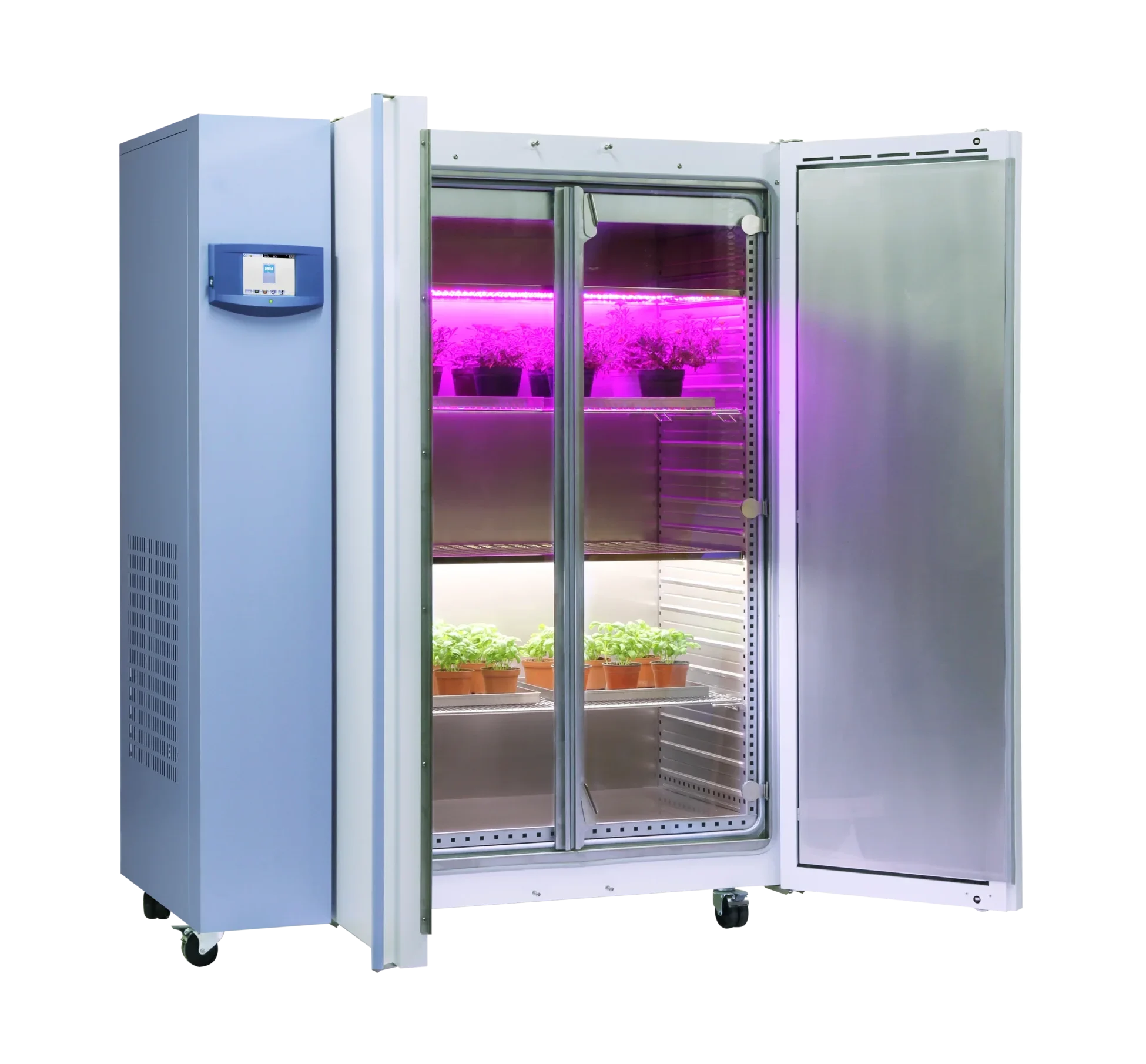

Flexible Lighting Options for ICH Q1B Photostability Studies

Configurable light source, placement, and intensity options.

Friocell EVO photostability chambers are designed to deliver the controlled light exposure and stable chamber conditions required for repeatable ICH Q1B testing. Configurable UV and visible light options, flexible light placement, and adjustable intensity settings allow the chamber to be tailored to specific product, packaging, and exposure requirements for consistent photostability testing across a range of applications.

UV/Vis combination shelf lighting

Single wavelength UV/Vis light shelves

Flourescent tube UV shelf lighting

LED Vis shelf lighting

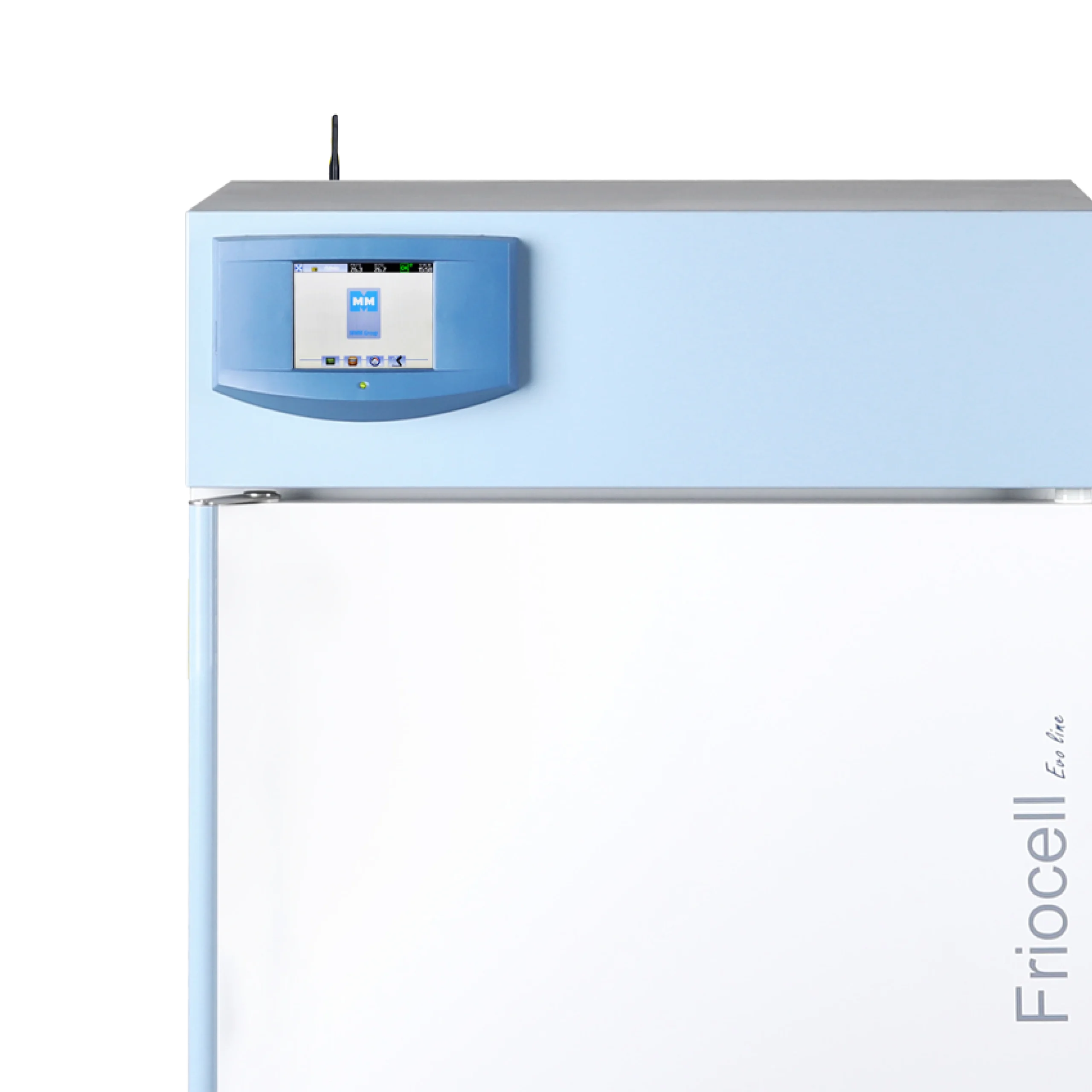

Adaptive Control for Reliable Results

Controls that adapt in real time to maintain stable chamber performance for accurate, repeatable results.

The advanced EVO controller with Fuzzy Logic continuously monitors chamber performance and adjusts temperature and airflow inputs in real time, helping maintain stable conditions without overshooting the setpoint. Support for up to 100 programs with 100 segments each allows operators to manage a wide range of test profiles for different products, packaging configurations, and ICH photostability requirements.

5.7-inch color touchscreen with glove-friendly operation.

Fuzzy logic microprocessor for real-time adaptive control.

100 stored programs with 100 segments eachfor diverse test profiles, unlimited cycles.

Real-time programming with configurable temperature ramping settings.

Graphic cycle display for easy cycle status monitoring.

Acoustic and visual alarms with continuous chamber condition monitoring.

Integrated 30-day data logger with Excel-formatted export.

USB, SD card, RS 232, and optional Ethernet connectivity for data export and network integration.

Multi-level user authentication and optional 21 CFR Part 11-supporting data management through Warmcomm software.

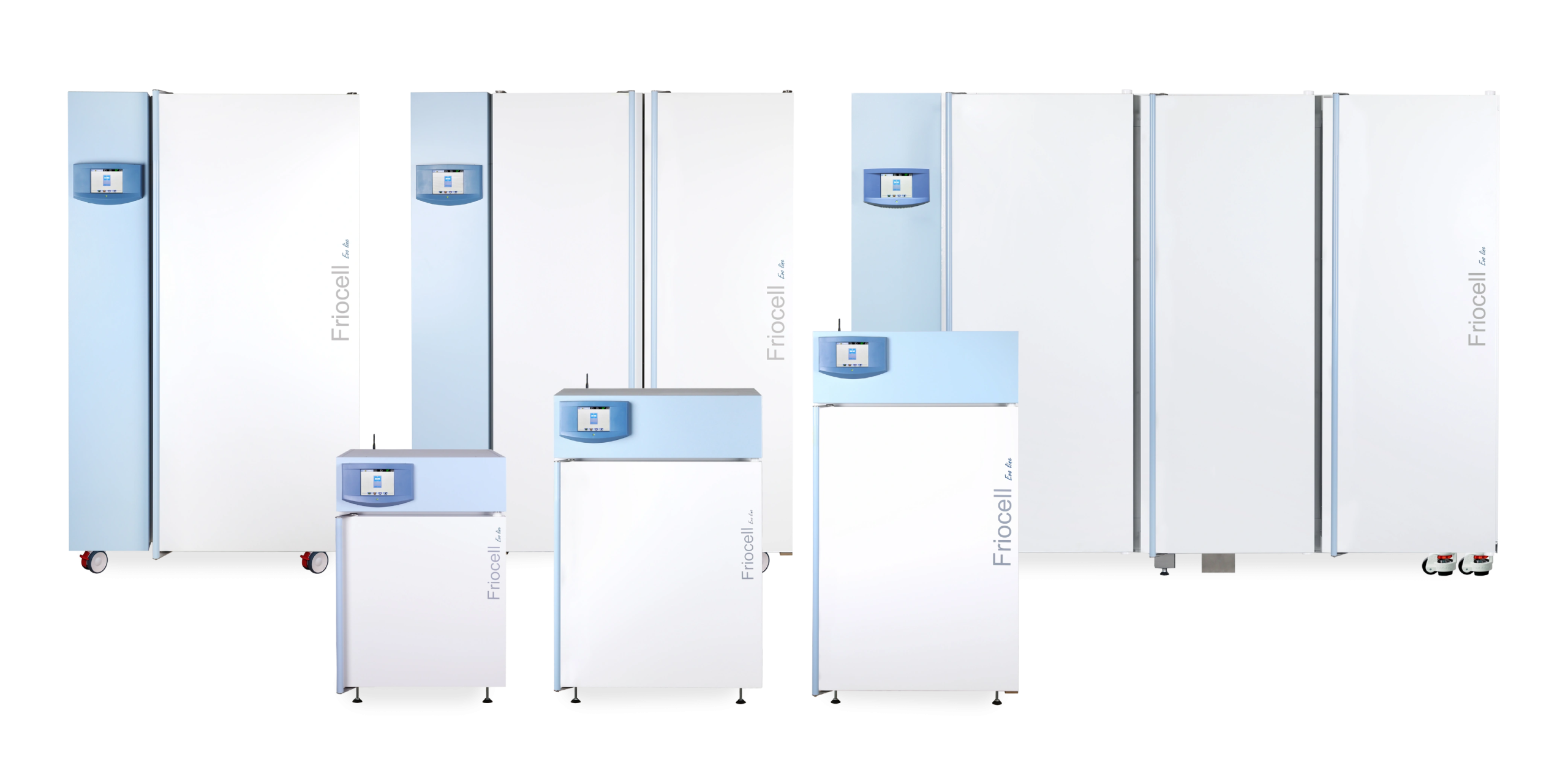

Model Selection Guide

Model

Chamber Volume
cu. ft. (liters)

Internal Dimensions
w x h x d (mm)

External Dimensions
w x h x d (mm)

Shelf Qty.

Useable Shelf Area
w x h x d (mm)

Friocell EVO 111 ICH

4 (111)

21.3″ x 14.6″ x 20.9″
(540 x 370 x 530)

29.9″ x 29.5″ x 44.9″
(760 x 750 x 1140)

7 guides / 2 shelves included

20.5″ x 13.2″ (520 x 335)

Friocell EVO 222 ICH

8 (222)

21.3″ x 20.5″ x 29.9″
(540 x 520 x 760)

29.9″ x 35.4″ x 50.2″
(760 x 900 x 1275)

10 guides / 2 shelves included

20.5″ x 19.1″ (520 x 485)

Friocell EVO 404 ICH

14.3 (404)

21.3″ x 20.5″ x 55.7″
(540 x 520 x 1415)

41.7″ x 31.1″ x 75″
(1060 x 790 x 1905)

19 guides / 2 shelves included

20.5″ x 19.1″ (520 x 485)

Friocell EVO 707 ICH

25 (707)

37″ x 20.5″ x 55.7″
(940 x 520 x 1415)

57.5″ x 33.9″ x 75″
(1460 x 860 x 1905)

19 guides / 2 shelves included

36.3″ x 19.1″ (920 x 485)

Friocell EVO 1212 ICH

43 (1212)

(3 x 21.3″) x 20.5″ x 55.7″
(3 x 540) x 520 x 1415)

95.9″ x 34.2″ x 75″
(2435 x 870 x 1905)

3 x 19 guides / 6 shelves included

20.5″ x 19.1 (520 x 485)

Accessories

Shelving

Stainless steel perforated shelf

Stainless steel grated wire shelf

Suspension system for hanging samples from the ceiling of the chamber

Exterior, Chamber & Door

1″ (25mm) / 2″ (50mm) / 4″ (100mm) access port

AISI 316 stainless steel chamber

AISI 304 or 316 stainless steel exterior

Rolling cart with casters (swiveling/locking and swiveling/leveling) for 111 and 222 models

Adjustable feet or casters with smooth travel and extendable leveling feet

Stainless stacking frame for model 111 devices

PT 100 flexible temperature sensor

Automatic key and door lock

Door sensor and alarm

Waterproof 230V electrical socket installed inside the chamber

Window with 3 layers of insulating glass for observation of samples inside the chamber

Interior light – heat resistant with mechanical switch or an electronic switch that is automatically activated when the door opens

Controlled Climate & Lighting

-20°C EVO minimum temperature

160°C sterilization cycle for EVO models

Data, Communications & Compliance

IQ/OQ protocols with 9pt. or 27pt. temperature mapping – DIN 12880

Region specific electrical plug

External printer

Warmcomm software – FDA CFR 12 Part 11 compliant

Ethernet port

BMS contacts (24V, 1A)
