Incucell

Microbiological Incubators - Natural Gravity Convection

Incucell natural gravity convection microbiological incubators provide noiseless operation with gentle airflow and exceptional temperature uniformity. The fanless operation significantly reduces particle movement inside the chamber, making the Incucell ideal for the safe treatment of microbiological samples.

Model Specifications

Incucell 22

Working Temperatures

Ambient + 5°C up to 100°C

Heat Technology

Natural gravity convection

Chamber Volume

22L / (0.8 ft³)

Interior (wxdxh)

9.4″ x 13.8″ x 11.8″
240mm x 350mm x 300mm

Exterior (wxdxh)

16″ x 22″ x 24″
406mm x 560mm x 610mm

Weight

Net: 68.3lbs / 31kg
Gross: 79.4lbs / 36kg

# of shelf guides
(2.4" minimum spacing)

4 guides / 2 shelves included

Useable Shelf Area

7.3″ x 10.4″
185mm x 265mm

Max Load Per Shelf

22lbs / 10kg

Electrical

115V 50/60Hz

Regulatory Labels

CE, UL, CSA listed

Chamber Construction

Pharmaceutical-Grade Stainless Steel

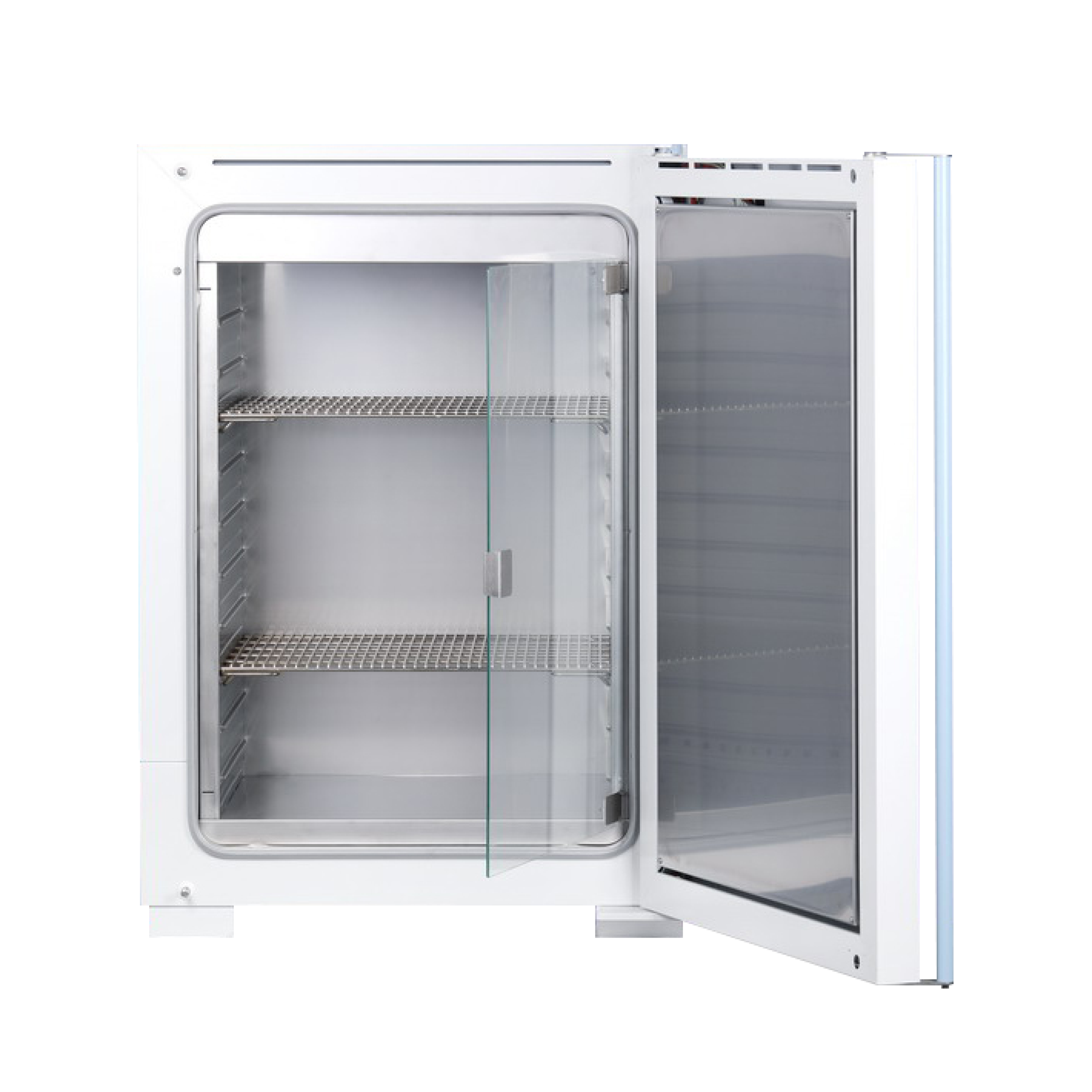

Incucell incubators are constructed with a pharmaceutical-grade AISI 304 stainless steel chamber packed with 5 layers of insulation for improved durability, temperature uniformity, and operating efficiency. The inner chamber is seamless with rounded corners and fully removable for easier cleaning and sterilization. The chamber door is equipped with a patented 4-point closing system that seals the door to the chamber gasket and enables hands-free opening and closing.
  • AISI 304 stainless steel chamber
  • Removable inner chamber with seamless, rounded corner design for easier cleaning and sterilization.
  • Shelf brackets that do not penetrate the chamber walls – brackets are molded into the inner chamber walls 2.8″ apart.
  • 4-point closing system that seals the door to the chamber gasket – automatic or key door lock options availabe, door sensor and alarm option available.
  • Double wall chamber construction with 5 layers of insulation for more uniform internal chamber conditions.
  • (2″) 50 mm stainless steel port – (1″) 25mm, (2″) 50mm, (4″) 100mm access port options available.
  • Inner glass door allows viewing into the chamber without affecting internal conditions

Heat Technology

Natural Gravity Convection

With nearly undetectable noise and vibration, the natural gravity convection system produces gentle airflow with even temperature uniformity throughout the chamber. Fanless operation reduces particle movement, preventing sample contamination, and significantly reduces power consumption.

Control System

Precise & Automated Control of Cycle Parameters

As standard, BMT USA devices are equipped with the ECO digital controller with the option to upgrade to the advanced EVO controller for expanded functionality and features. Both controllers employ fuzzy logic algorithms to evaluate cycle data in real-time and continuously adjust input values to maintain optimal chamber conditions. This allows for rapid heating and cooling while safeguarding against overshooting the temperature setpoint, protecting the load, ensuring the accuracy of results, and reducing cycle durations, recovery times, and power consumption.

ECO

Standard Digital Controller
  • 3″ LCD display
  • Fuzzy logic enabled microprocessor
  • 9 programs / 2 segments each for varying loads and parameters — up to 99 cycles
  • Real-time programming & cycling – optional temperature ramping settings
  • Optional Ethernet port
  • Delayed heating start & stop function
  • Digital safety thermostat
  • Acoustic and digital alarms
  • Optional integrated data logger for temperature measurement and recording
  • Constant monitoring of chamber conditions
  • USB & RS 232 port
  • Keypad lock

EVO

Advanced Digital Controller
  • 5.7″ color touchscreen – glove friendly operation
  • Fuzzy logic enabled microprocessor
  • 100 programs / 100 segments each for varying loads and parameters, unlimited cycles
  • Real-time programming and cycling with temperature ramping settings included
  • Graphic display of cycle parameters
  • Optional Ethernet port & WiFi connectivity
  • Delayed heating start & stop function
  • Digital safety thermostat
  • Acoustic and digital alarms
  • Integrated data logger – FDA CFR 21 Part 11
  • Constant monitoring of chamber conditions
  • RS 232 port
  • USB port & SD card slot with Microsoft Excel formatted data storage
  • Remote access with multi-level authentication – FDA CFR 21 Part 11 compliant
  • DIN 12880 digital safety thermostat

Optional Equipment

Shelving

  • Stainless steel perforated shelf
  • Stainless steel grated wire shelf

Construction

  • Automatic key and door lock
  • Adjustable feet or casters with smooth travel and extendable leveling feet
  • Rolling cart with casters (swiveling/locking and swiveling/leveling) for 22, 55, 111, 222 models
  • Door sensor and alarm
  • PT 100 flexible temperature sensor
  • Interior light – heat resistant with mechanical switch or an electronic switch that is automatically activated when the door opens
  • AISI 304 or 316 stainless steel exterior
  • AISI 316 stainless steel chamber
  • Waterproof 115V or 230V electrical socket installed inside the chamber

Gas Control

  • ECO Plus: add 6 program segments for a total of 8 segments and 9 programs
  • External printer
  • USB drive – 30-day data logging for 22, 55, 111 models
  • Ethernet port

Compliance

  • IQ/OQ protocols with 9pt. or 27pt. temperature mapping – DIN 12880
  • Region specific electrical plug
  • Warmcomm software – FDA CFR 12 Part 11 compliant
  • BMS contacts (24V, 1A)
