Vacucell

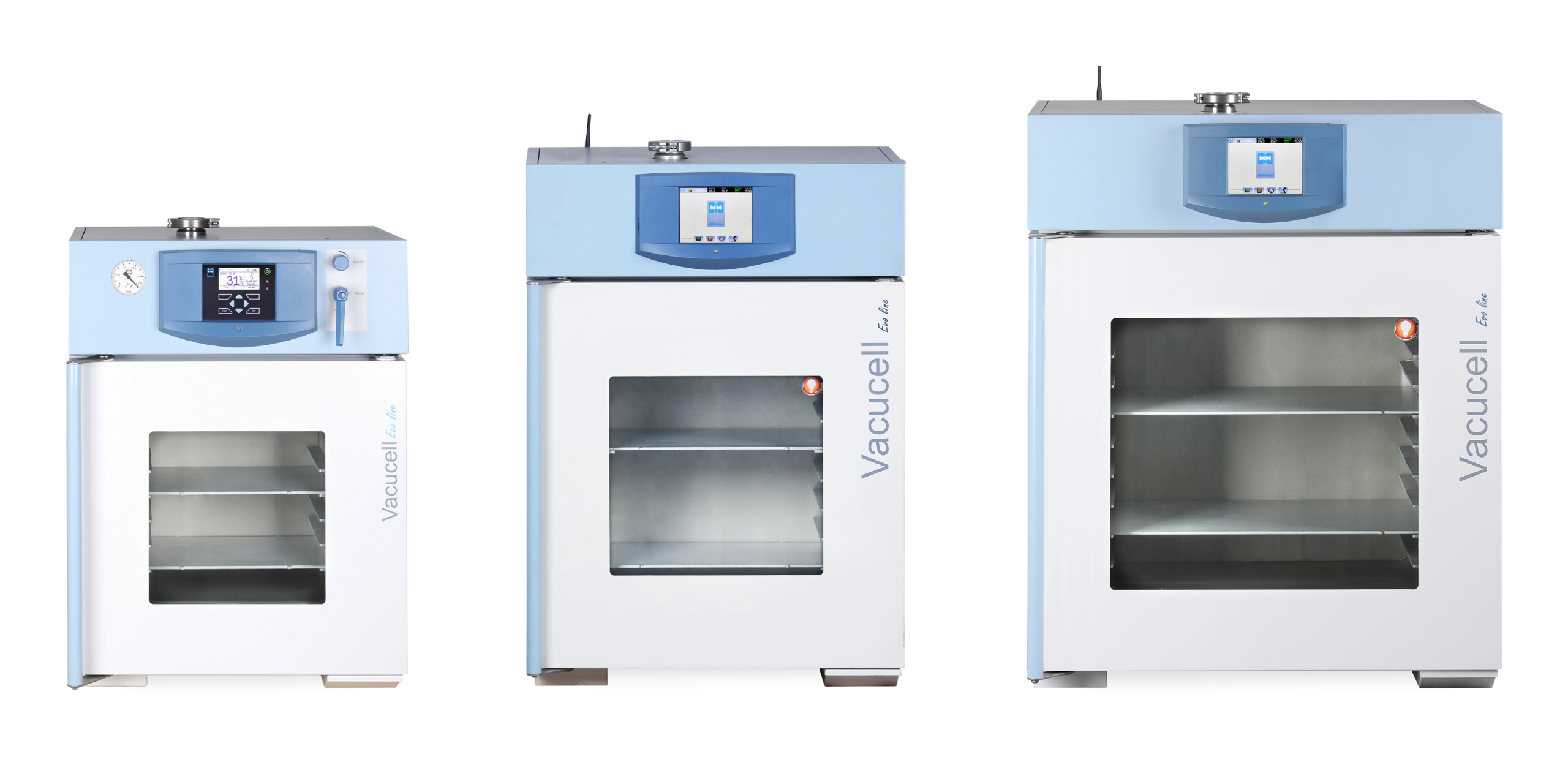

Vacuum Drying Ovens - 22L / 55L / 111L

Fast drying of samples and solvents under gentle vacuum.

Patented Servotherm direct heat transfer system delivers fast, efficient and uniform heating.

Built-in safety features protect laboratory staff and the load.

Pressure-resistant, pharmaceutical-grade stainless steel chamber.

Device Overview & Model Specifications

Vacucell vacuum drying ovens are engineered to dry temperature-sensitive, easily decomposable, or oxidative materials and solvents under controlled vacuum conditions. These ovens feature the Servotherm direct heat transfer system, which efficiently conducts heat from electrically heated chamber walls to the load via aluminum shelving. The ovens also include an inert gas connection for air evacuation from the chamber. Vacucell devices can be connected to a central vacuum source or equipped with a BMT Vacustation, which can house a dedicated vacuum pump for a complete standalone system.

Vacucell 22 ECO

Working Temperatures

Ambient + 5°C up to 200°C

300°C max temp available on EVO models

Heat Technology

Servotherm direct heat transfer system

Chamber Volume

22L / (0.8 ft³)

Control System

ECO standard microprocessor controller with fuzzy logic and 3″ digital LCD display

Maximum Reachable Vacuum

5 x 10-4 mbar / 0.0005 mbar /
0.000375 Torr / 0.00001 inHg

Chamber Leakage

<5 x 10-3 mbar.I.s-1

Interior (wxdxh)

13.4″ x 10.2″ x 11.8″
340mm x 259mm x 300mm

Exterior (wxdxh)

22.1″ x 19.7″ x 30.7″
561mm x 500mm x 780mm

Weight

Net: 143.3lbs / 65kg

# of shelf guides
(1.42" minimum spacing)

5 guides / 2 shelves included

Useable Shelf Area

11″ x 9.3″
279mm x 236mm

Max Load Per Shelf

44.1lbs / 20kg

Vacuum Connection

DN mm (ISO KF) 16 + hose connection Ø 12mm

Inert Gas Connection

Inert gas connection with needle valve for fine dosing

Electrical

115V 50/60Hz

Regulatory Labels

CE, UL, CSA listed

Vacucell 55 ECO

Working Temperatures

Ambient + 5°C up to 200°C

300°C max temp available on EVO models

Heat Technology

Servotherm direct heat transfer system

Chamber Volume

55L / (2 ft³)

Control System

ECO standard microprocessor controller with fuzzy logic and 3″ digital LCD display

Maximum Reachable Vacuum

5 x 10-4 mbar / 0.0005 mbar /
0.000375 Torr / 0.00001 inHg

Chamber Leakage

<5 x 10-3 mbar.I.s-1

Interior (wxdxh)

15.7″ x 12.6″ x 16.9″
400mm x 320mm x 430mm

Exterior (wxdxh)

24.4″ x 22.1″ x 35.8″
620mm x 560mm x 910mm

Weight

Net: 216.1lbs / 98kg

# of shelf guides
(1.7" minimum spacing)

8 guides / 2 shelves included

Useable Shelf Area

13.4″ x 11.7″
340mm x 296mm

Max Load Per Shelf

55.1lbs / 25kg

Vacuum Connection

DN mm (ISO KF) 16 + hose connection Ø 12mm

Inert Gas Connection

Inert gas connection with needle valve for fine dosing

Electrical

115V 50/60Hz

Regulatory Labels

CE, UL, CSA listed

Vacucell 111 ECO

Working Temperatures

Ambient + 5°C up to 200°C

300°C max temp available on EVO models

Heat Technology

Servotherm direct heat transfer system

Chamber Volume

111L / (2 ft³)

Control System

ECO standard microprocessor controller with fuzzy logic and 3″ digital LCD display

Maximum Reachable Vacuum

5 x 10-4 mbar / 0.0005 mbar /
0.000375 Torr / 0.00001 inHg

Chamber Leakage

<5 x 10-3 mbar.I.s-1

Interior (wxdxh)

21.3″ x 16.1″ x 18.9″
540mm x 3410mm x 480mm

Exterior (wxdxh)

29.9″ x 25.6″ x 37.8″
760mm x 650mm x 960mm

Weight

Net: 286.6lbs / 130kg

# of shelf guides
(1.7" minimum spacing)

9 guides / 2 shelves included

Useable Shelf Area

18.9″ x 15.2″
480mm x 386mm

Max Load Per Shelf

55.1lbs / 25kg

Vacuum Connection

DN mm (ISO KF) 16 + hose connection Ø 12mm

Inert Gas Connection

Inert gas connection with needle valve for fine dosing

Electrical

115V 50/60Hz

Regulatory Labels

CE, UL, CSA listed

Vacucell 22 EVO

Working Temperatures

Ambient + 5°C up to 300°C

Heat Technology

Servotherm direct heat transfer system

Chamber Volume

22L / (0.8 ft³)

Control System

EVO advanced microprocessor controller with fuzzy logic and 5.7″ touch display

Maximum Reachable Vacuum

5 x 10-4 mbar / 0.0005 mbar /
0.000375 Torr / 0.00001 inHg

Chamber Leakage

<5 x 10-3 mbar.I.s-1

Interior (wxdxh)

13.4″ x 10.2″ x 11.8″
340mm x 259mm x 300mm

Exterior (wxdxh)

22.1″ x 19.7″ x 30.7″
561mm x 500mm x 780mm

Weight

Net: 149.9lbs / 68kg

# of shelf guides
(1.42" minimum spacing)

5 guides / 2 shelves included

Useable Shelf Area

11″ x 9.3″
279mm x 236mm

Max Load Per Shelf

44.1lbs / 20kg

Vacuum Connection

DN mm (ISO KF) 16 + hose connection Ø 12mm

Inert Gas Connection

Inert gas connection with needle valve for fine dosing

Electrical

115V 50/60Hz

Regulatory Labels

CE, UL, CSA listed

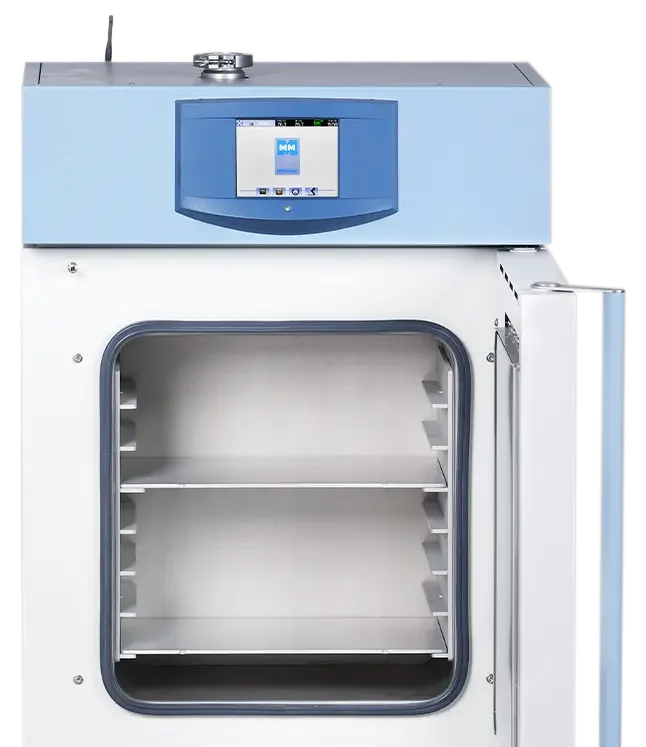

Vacucell 55 EVO

Working Temperatures

Ambient + 5°C up to 300°C

Heat Technology

Servotherm direct heat transfer system

Chamber Volume

55L / (2 ft³)

Control System

EVO advanced microprocessor controller with fuzzy logic and 5.7″ touch display

Maximum Reachable Vacuum

5 x 10-4 mbar / 0.0005 mbar /
0.000375 Torr / 0.00001 inHg

Chamber Leakage

<5 x 10-3 mbar.I.s-1

Interior (wxdxh)

15.7″ x 12.6″ x 16.9″
400mm x 320mm x 430mm

Exterior (wxdxh)

24.4″ x 22.1″ x 35.8″
620mm x 560mm x 910mm

Weight

Net: 222.6lbs / 101kg

# of shelf guides
(1.7" minimum spacing)

8 guides / 2 shelves included

Useable Shelf Area

13.4″ x 11.7″
340mm x 296mm

Max Load Per Shelf

55.1lbs / 25kg

Vacuum Connection

DN mm (ISO KF) 16 + hose connection Ø 12mm

Inert Gas Connection

Inert gas connection with needle valve for fine dosing

Electrical

115V 50/60Hz

Regulatory Labels

CE, UL, CSA listed

Vacucell 111 EVO

Working Temperatures

Ambient + 5°C up to 300°C

Heat Technology

Servotherm direct heat transfer system

Chamber Volume

111L / (2 ft³)

Control System

EVO advanced microprocessor controller with fuzzy logic and 5.7″ touch display

Maximum Reachable Vacuum

5 x 10-4 mbar / 0.0005 mbar /
0.000375 Torr / 0.00001 inHg

Chamber Leakage

<5 x 10-3 mbar.I.s-1

Interior (wxdxh)

21.3″ x 16.1″ x 18.9″
540mm x 3410mm x 480mm

Exterior (wxdxh)

29.9″ x 25.6″ x 37.8″
760mm x 650mm x 960mm

Weight

Net: 293.2lbs / 133kg

# of shelf guides
(1.7" minimum spacing)

9 guides / 2 shelves included

Useable Shelf Area

18.9″ x 15.2″
480mm x 386mm

Max Load Per Shelf

55.1lbs / 25kg

Vacuum Connection

DN mm (ISO KF) 16 + hose connection Ø 12mm

Inert Gas Connection

Inert gas connection with needle valve for fine dosing

Electrical

115V 50/60Hz

Regulatory Labels

CE, UL, CSA listed

Chamber Construction

Pharmaceutical-Grade Stainless Steel

Vacucell vacuum ovens are equipped with a pharmaceutical-grade AISI 304 stainless steel pressure resistant chamber for ECO models and an AISI 316 stainless steel pressure resistant chamber for EVO models. The inner chamber is equipped with Servotherm shelving that safely and efficiently transfers heat from the chamber walls to the load. The door of the chamber is designed with 2cm thick Ventiflex spring-mounted glass for viewing of the contents inside the chamber and to allow gas and pressure to escape in an unlikely over-pressure event. A 4-point closing system securely seals the door to the chamber gasket.

AISI 304 (ECO) / AISI 316 (EVO) stainless steel chamber

Door window installed in both the vacuum chamber and the optional Vacustation.

2cm thick Ventiflex glass mounted on guide rails and springs will release in the unlikely event of over-pressure in the chamber to relieve pressure and prevent a possible explosion.

Removable shelving brackets allow for easier cleaning and sterilization of the entire chamber

(2) aluminum shelves included – optional upgrade to stainless steel shelves available

4-point closing system that seals the door to the chamber gasket – automatic or key door lock options availabe, door sensor and alarm option available.

Heat Technology

Servotherm Direct Heat Transfer System

Vacucell ovens are equipped with the patented Servotherm direct heat transfer system, which heats the chamber walls via powerful heating elements. The generated heat is then transferred from the chamber walls through the aluminum Servotherm shelves to the load for safe and efficient drying of media and solvents.

Control System

Precise & Automated Control of Cycle Parameters

As standard, BMT USA devices are equipped with the ECO digital controller with the option to upgrade to the advanced EVO controller for expanded functionality and features. Both controllers employ fuzzy logic algorithms to evaluate cycle data in real-time and continuously adjust input values to maintain optimal chamber conditions. This allows for rapid heating and cooling while safeguarding against overshooting the temperature setpoint, protecting the load, ensuring the accuracy of results, and reducing cycle durations, recovery times, and power consumption.

ECO

Standard Digital Controller

3″ LCD display

Fuzzy logic enabled microprocessor

9 programs / 2 segments each for varying loads and parameters — up to 99 cycles

Real-time programming & cycling – optional temperature ramping settings

Optional Ethernet port

Delayed heating start & stop function

Digital safety thermostat

Acoustic and digital alarms

Optional integrated data logger for temperature measurement and recording

Constant monitoring of chamber conditions

USB & RS 232 port

Keypad lock

EVO

Advanced Digital Controller

5.7″ color touchscreen – glove friendly operation

Fuzzy logic enabled microprocessor

100 programs / 100 segments each for varying loads and parameters, unlimited cycles

Real-time programming and cycling with temperature ramping settings included

Graphic display of cycle parameters

Optional Ethernet port & WiFi connectivity

Delayed heating start & stop function

Digital safety thermostat

Acoustic and digital alarms

Integrated data logger – FDA CFR 21 Part 11

Constant monitoring of chamber conditions

RS 232 port

USB port & SD card slot with Microsoft Excel formatted data storage

Remote access with multi-level authentication – FDA CFR 21 Part 11 compliant

DIN 12880 digital safety thermostat

Vacustation

All-in-one solution for vacuum pumps

The Vacustation directly integrates with Vacucell ECO and EVO devices to house a vacuum pump. Equipped with locking casters, the Vacustation provides improved mobility and an elevated surface to place the oven. The Vacustation can be paired with almost any type of vacuum pump, from manufacturers such as Welch Vacuum.

Optional Equipment

Shelving

Stainless steel shelves and brackets

Construction

Automatic key and door lock

Adjustable feet or casters with smooth travel and extendable leveling feet

Interior light – heat resistant with mechanical switch or an electronic switch that is automatically activated when the door opens

Door sensor and alarm

Waterproof interior electrical socket 115V

Rolling cart with casters (swiveling/locking and swiveling/leveling) for 22, 55, 111 models

AISI 304 or 316 stainless steel exterior

PT 100 flexible temperature sensor

Functiontality

ECO plus: add 6 programs segments for a total of 8 segments and 9 programs

Vacuum pump with inlet separator and exhaust condenser
available capacities:
- 2m3/h, 7mba
- 3.4m3/h, 1.5mba

ECO Digital vacuum display: 10 – 1,000 mb

Vacustation cabinet for vacuum pump

EVO Digital vacuum display: 0.1 – 10,000 mbr

Ethernet port

Compliance

IQ/OQ protocols with 9pt. or 27pt. temperature mapping – DIN 12880

Region specific electrical plug

Warmcomm software – FDA CFR 12 Part 11 compliant

BMS contacts (24v, 1A)
