Climacell ^EVO CO2

Large Volume CO² Incubators + Humidity Control

With precise control of temperature, humidity, airflow and CO² concentration, Climacell EVO large volume CO² incubators can create optimal conditions for cell growth. The patented forced air convection system produces stable temperatures with even distribution, and the standard equipped Vaisala drift-free infrared CO² sensor provides accurate measurements over the full duration of the incubation cycle.

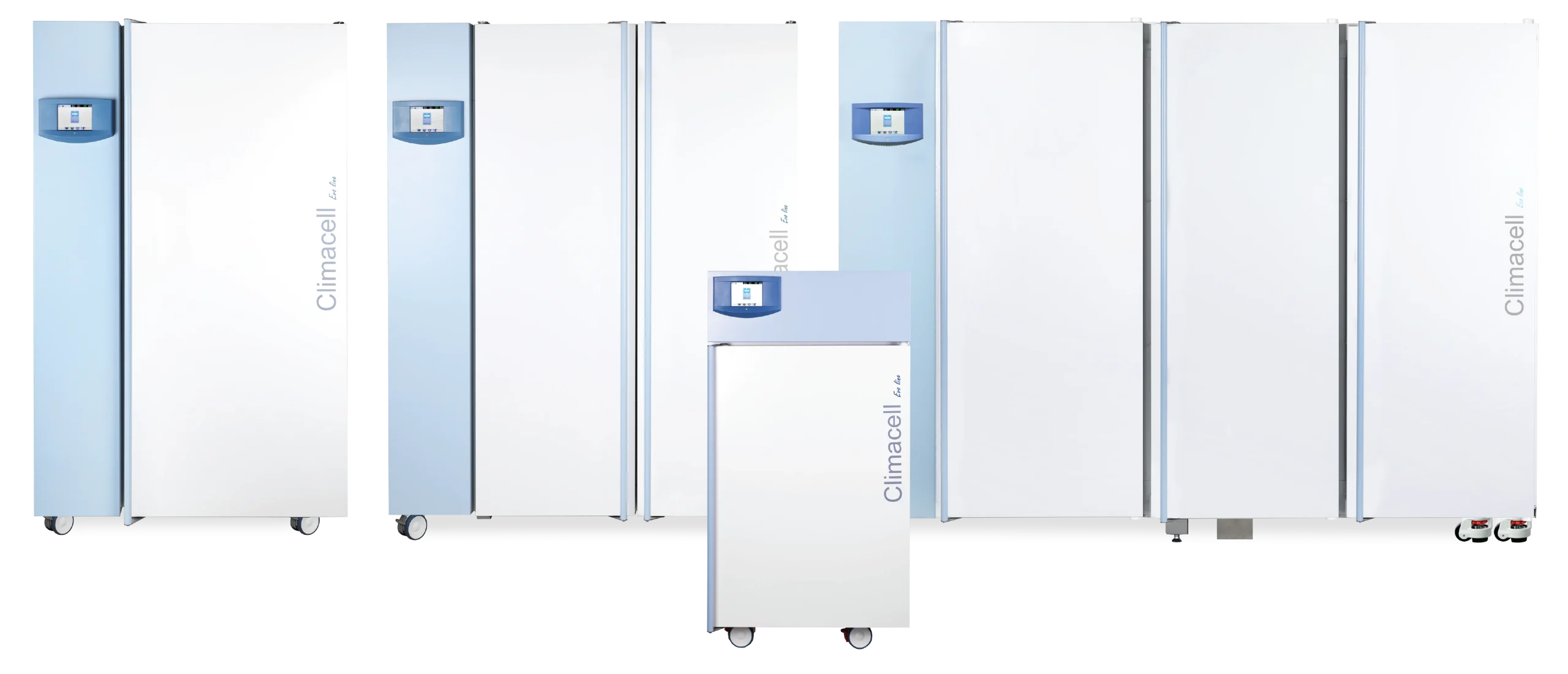

Model Specifications

Climacell 222 EVO: CO2

Working Temperatures

0°C up to 100°C; 10°C up to 95°C with humidity

Optional 160°C sterilization cycle

Heat Technology

Patented forced air convection

Chamber Volume

222L / (8 ft³)

Controlled Humdity

10% RH up to 98% RH; uniformity up to 2%

Controlled in 1% increments
Active dehumidification

CO² Control

0.1% up to 20%

Equipped with Vaisala drift-free infrared (IR) CO² sensor

Refrigerant

R 134a

Interior (wxdxh)

21.3″ x 20.9″ x 30.1″
540mm x 530mm x 765mm

Exterior (wxdxh)

30.7″ x 34.8″ x 57.1″
780mm x 885mm x 1450mm

Weight

Net: 324.1lbs / 147kg

# of shelf guides
(2.8" minimum spacing)

10 guides / 2 shelves included

Useable Shelf Area

20.5″ x 19.1″
520mm x 485mm

Max Load Per Shelf

66.1lbs / 30kg

Control System

EVO advanced microprocessor controller with fuzzy logic and 5.7″ touch display

Electrical

230V 50/60Hz

Regulatory Labels

CE, UL, CSA listed

Climacell 404 EVO: CO2

Working Temperatures

0°C up to 100°C; 10°C up to 95°C with humidity

Optional 160°C sterilization cycle

Heat Technology

Patented forced air convection

Chamber Volume

404L / (14.3 ft³)

Controlled Humdity

10% RH up to 98% RH; uniformity up to 2%

Controlled in 1% increments
Active dehumidification

CO² Control

0.1% up to 20%

Equipped with Vaisala drift-free infrared (IR) CO2 sensor

Refrigerant

R 134a

Interior (wxdxh)

21.3″ x 20.9″ x 55.7″
540mm x 530mm x 1415mm

Exterior (wxdxh)

43.1″ x 34.8″ x 74.4″
1100mm x 885mm x 1890mm

Weight

Net: 529.1lbs / 240kg

# of shelf guides
(2.8" minimum spacing)

19 guides / 2 shelves included

Useable Shelf Area

20.5″ x 19.1″
520mm x 485mm

Max Load Per Shelf

66.1lbs / 30kg

Control System

EVO advanced microprocessor controller with fuzzy logic and 5.7″ touch display

Electrical

230V 50/60Hz

Regulatory Labels

CE, UL, CSA listed

Climacell 707 EVO: CO2

Working Temperatures

0°C up to 100°C; 10°C up to 95°C with humidity

Optional 160°C sterilization cycle

Heat Technology

Patented forced air convection

Chamber Volume

707L / (25 ft³)

Controlled Humdity

10% RH up to 98% RH; uniformity up to 2%

Controlled in 1% increments
Active dehumidification

CO² Control

0.1% up to 20%

Equipped with Vaisala drift-free infrared (IR) CO2 sensor

Refrigerant

R 134a

Interior (wxdxh)

37″ x 20.9″ x 55.7″
940mm x 530mm x 1415mm

Exterior (wxdxh)

59.2″ x 34.8″ x 74.4″
1500mm x 885mm x 1890mm

Weight

Net: 617.3lbs / 280kg

# of shelf guides
(2.8" minimum spacing)

19 guides / 2 shelves included

Useable Shelf Area

36.3″ x 19.1″
920mm x 485mm

Max Load Per Shelf

110.2lbs / 50kg

Control System

EVO advanced microprocessor controller with fuzzy logic and 5.7″ touch display

Electrical

230V 50/60Hz

Regulatory Labels

CE, UL, CSA listed

Climacell 1212 EVO: CO2

Working Temperatures

0°C up to 100°C; 10°C up to 95°C with humidity

Optional 160°C sterilization cycle

Heat Technology

Patented forced air convection

Chamber Volume

1212L / (43 ft³)

Controlled Humdity

10% RH up to 98% RH; uniformity up to 2%

Controlled in 1% increments
Active dehumidification

CO² Control

0.1% up to 20%

Equipped with Vaisala drift-free infrared (IR) CO2 sensor

Refrigerant

R 134a

Interior (wxdxh)

(3×21.3″) x 20.9″ x 55.7″
(3×540)mm x 530mm x 1415mm

Exterior (wxdxh)

99.6″ x 35.4″ x 75.6″
2530mm x 898mm x 1921mm

Weight

Net: 1250lbs / 567kg

# of shelf guides
(2.8" minimum spacing)

(3×19) guides / 6 shelves included

Useable Shelf Area

20.5″ x (3×19.1″)
520mm x (3x485mm)

Max Load Per Shelf

66.1lbs / 30kg

Control System

EVO advanced microprocessor controller with fuzzy logic and 5.7″ touch display

Electrical

230V 50/60Hz

Regulatory Labels

CE, UL, CSA listed

Vaisala Drift-Free Infrared CO² Sensor

Vaisala drift free infrared CO² sensors provide accurate carbon dioxide measurements to ensure samples are always incubating at the correct concentration levels. The sensor does not require any additional auto-referencing or zeroing to prevent drifting of the CO² calibration.

Chamber Construction

Pharmaceutical-Grade Stainless Steel

The Climacell is constructed with a pharmaceutical-grade AISI 304 stainless steel chamber packed with 5 layers of insulation for improved durability, temperature uniformity, and operating efficiency. The inner chamber is seamless with rounded corners and fully removable for easier cleaning and sterilization. The chamber door is equipped with a patented 4-point closing system that seals the door to the chamber gasket and enables hands-free opening and closing.

AISI 304 stainless steel chamber – 316L stainless steel option available

Removable inner chamber with seamless, rounded corner design for easier cleaning and sterilization.

Shelf brackets that do not penetrate the chamber walls – brackets are molded into the inner chamber walls 2.8″ apart.

4-point closing system that seals the door to the chamber gasket – automatic or key door lock options availabe, door sensor and alarm option available.

Double wall chamber construction with 5 layers of insulation for more uniform internal chamber conditions.

(2″) 50 mm stainless steel port – (1″) 25mm, (2″) 50mm, (4″) 100mm access port options available.

Inner glass door allows viewing into the chamber without affecting internal conditions

Heat Technology

Patented Forced Air Convection

Our patented force air convection system produces simultaneous vertical and horizontal airflow for precise temperature uniformity and rapid heating and cooling times. The process of heating from the bottom of the chamber to the top simulates natural airflow, allowing for a more accurate replication of climate conditions.

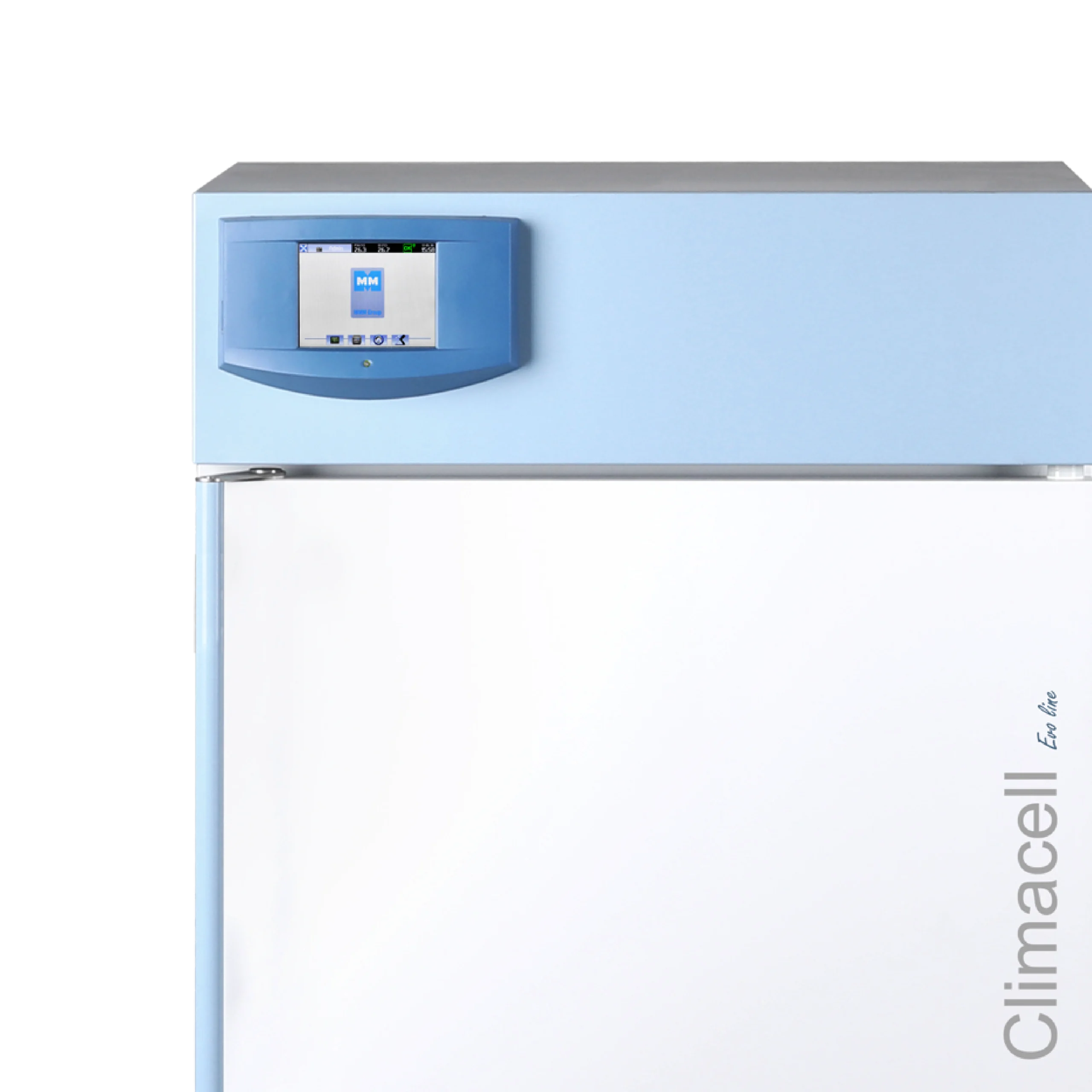

Control System

Precise & Automated Control of Cycle Parameters

The advanced EVO digital controller is programmed with fuzzy logic, which analyzes cycle data in real-time and automatically adjusts inputs to maintain stable conditions. This allows for rapid heating and cooling times without overshooting the temperature setpoint, protecting the load and reducing the cycle duration, recovery time, and power consumption. The 5.7″ touch screen provides glove-friendly operation with graphical display of cycle data. EVO controllers can run an unlimited number of cycles with capacity for 100 programs each containing up to 100 segments for varying loads and parameters.

EVO

Advanced Digital Controller

5.7″ color touchscreen – glove friendly operation

Fuzzy logic enabled microprocessor

100 programs / 100 segments each for varying loads and parameters, unlimited cycles

Real-time programming and cycling with temperature ramping settings included

Graphic display of cycle parameters

Optional Ethernet port & WiFi connectivity

Delayed heating start & stop function

Digital safety thermostat

Acoustic and digital alarms

Integrated data logger – FDA CFR 21 Part 11

Constant monitoring of chamber conditions

RS 232 port

USB port & SD card slot with Microsoft Excel formatted data storage

Remote access with multi-level authentication – FDA CFR 21 Part 11 compliant

DIN 12880 digital safety thermostat

Optional Equipment

Shelving

Stainless steel perforated shelf

Stainless steel grated wire shelf

Suspension system for hanging samples from the ceiling of the chamber

Construction

Automatic key and door lock

AISI 304 or 316 stainless steel exterior

Heated inner glass door – eliminates condensation

Waterproof 230V electrical socket installed inside the chamber

Adjustable feet or casters with smooth travel and extendable leveling feet

Door sensor and alarm

PT 100 flexible temperature sensor

Window with 3 layers of insulating glass for observation of samples inside the chamber

Rolling cart with casters (swiveling/locking and swiveling/leveling) for 111 and 222 models

AISI 316 stainless steel chamber

Stainless stacking frame for model 111 devices

1″ (25mm) / 2″ (50mm) / 4″ (100mm) access port

Interior light – heat resistant with mechanical switch or an electronic switch that is automatically activated when the door opens

Functionality

N² control: 1% up to 20% – Climacell 111 EVO models only

Programmable UV-Vis lighting

160°C sterilization cycle for EVO models

External printer

Ethernet port

Compliance

IQ/OQ protocols with 9pt. or 27pt. temperature mapping – DIN 12880

Region specific electrical plug

Warmcomm software – FDA CFR 12 Part 11 compliant

BMS contacts (24V, 1A)
