Friocell ^ECO Peltier

Peltier Cooled Incubators

Characterized by low energy consumption, quiet operation, and fast heating and cooling times, the Friocell ECO Peltier is an environmentally friendly and efficient solution for long term sample storage, cell cultivation, stability testing, and incubation at temperatures between 21°C below ambient up to 45°C above ambient.

Model Specifications

Friocell 22 ECO Peltier

Working Temperatures

21°C below ambient up to 45°C above ambient.

programmable from 0°C up to 70°C

Heat Technology

Patented forced air convection

Chamber Volume

22L / (0.8 ft³)

Control System

ECO standard microprocessor controller with fuzzy logic and 3″ digital LCD display

Peltier Cooling

Thermoelectric cooling with no liquid refrigerant and low energy consumption

Patented Airflow Control

Fan controlled in 10% increments

Interior (wxdxh)

9.4″ x 12″ x 11.6″
240mm x 305mm x 295mm

Exterior (wxdxh)

16″ x 24″ x 24″
406mm x 610mm x 610mm

Weight

Net: 75lbs / 34kg

# of shelf guides
(2.4" minimum spacing)

4 guides / 2 shelves included

Useable Shelf Area

7.2″ x 10.4″
185mm x 265mm

Max Load Per Shelf

22lbs / 10kg

Electrical

115V 50/60Hz
230V 50/60Hz

Regulatory Labels

CE, UL, CSA listed

Friocell 55 ECO Peltier

Working Temperatures

21°C below ambient up to 45°C above ambient.

programmable from 0°C up to 70°C

Heat Technology

Patented forced air convection

Chamber Volume

55L / (2 ft³)

Control System

ECO standard microprocessor controller with fuzzy logic and 3″ digital LCD display

Peltier Cooling

Thermoelectric cooling with no liquid refrigerant and low energy consumption

Patented Airflow Control

Fan controlled in 10% increments

Interior (wxdxh)

15.7″ x 14.6″ x 13.8″
400mm x 370mm x 350mm

Exterior (wxdxh)

24.4″ x 26.8″ x 26.8″
620mm x 680mm x 680mm

Weight

Net: 127.9lbs / 58kg

# of shelf guides
(2.4" minimum spacing)

4 guides / 2 shelves included

Useable Shelf Area

15″ x 13.2″
380mm x 335mm

Max Load Per Shelf

44.1lbs / 20kg

Electrical

115V 50/60Hz
230V 50/60Hz

Regulatory Labels

CE, UL, CSA listed

Friocell 111 ECO Peltier

Working Temperatures

21°C below ambient up to 45°C above ambient.

programmable from 0°C up to 70°C

Heat Technology

Patented forced air convection

Chamber Volume

111L / (4 ft³)

Control System

ECO standard microprocessor controller with fuzzy logic and 3″ digital LCD display

Peltier Cooling

Thermoelectric cooling with no liquid refrigerant and low energy consumption

Patented Airflow Control

Fan controlled in 10% increments

Interior (wxdxh)

21.3″ x 14.6″ x 20.9″
540mm x 370mm x 530mm

Exterior (wxdxh)

39.9″ x 26.8″ x 33.9″
760mm X 680mm x 860mm

Weight

Net: 178.6lbs / 81kg

# of shelf guides
(2.4" minimum spacing)

7 guides / 2 shelves included

Useable Shelf Area

20.5″ x 13.2″
520mm x 335mm

Max Load Per Shelf

44.1lbs / 20kg

Electrical

115V 50/60Hz
230V 50/60Hz

Regulatory Labels

CE, UL, CSA listed

Friocell 222 ECO Peltier

Working Temperatures

21°C below ambient up to 45°C above ambient.

programmable from 0°C up to 70°C

Heat Technology

Patented forced air convection

Chamber Volume

222L / (8 ft³)

Control System

ECO standard microprocessor controller with fuzzy logic and 3″ digital LCD display

Peltier Cooling

Thermoelectric cooling with no liquid refrigerant and low energy consumption

Patented Airflow Control

Fan controlled in 10% increments

Interior (wxdxh)

21.3″ x 20.5″ x 29.9″
540mm x 520mm x 760mm

Exterior (wxdxh)

29.9″ x 32.7″ x 42.9″
760mm x 830mm x 1090mm

Weight

Net: 233.7lbs / 106kg

# of shelf guides
(2.4" minimum spacing)

10 guides / 2 shelves included

Useable Shelf Area

20.5″ x 19.1″
520mm x 485mm

Max Load Per Shelf

60.1lbs / 30kg

Electrical

115V 50/60Hz
230V 50/60Hz

Regulatory Labels

CE, UL, CSA listed

Friocell 404 ECO Peltier

Working Temperatures

14°C below ambient up to 30°C above ambient.

programmable from 0°C up to 70°C

Heat Technology

Patented forced air convection

Chamber Volume

404L / (14.3 ft³)

Control System

ECO standard microprocessor controller with fuzzy logic and 3″ digital LCD display

Peltier Cooling

Thermoelectric cooling with no liquid refrigerant and low energy consumption

Patented Airflow Control

Fan controlled in 10% increments

Interior (wxdxh)

21.3″ x 20.5″ x 55.7″
540mm x 520mm x 1415mm

Exterior (wxdxh)

29.9″ x 31.1″ x 75.2″
760mm x 790mm x 1910mm

Weight

Net: 343.9lbs / 156kg

# of shelf guides
(2.4" minimum spacing)

19 guides / 2 shelves included

Useable Shelf Area

20.5″ x 19.1″
520mm x 485mm

Max Load Per Shelf

60.1lbs / 30kg

Electrical

115V 50/60Hz
230V 50/60Hz

Regulatory Labels

CE, UL, CSA listed

Friocell 707 ECO Peltier

Working Temperatures

14°C below ambient up to 30°C above ambient.

programmable from 0°C up to 70°C

Heat Technology

Patented forced air convection

Chamber Volume

707L / (25 ft³)

Control System

ECO standard microprocessor controller with fuzzy logic and 3″ digital LCD display

Peltier Cooling

Thermoelectric cooling with no liquid refrigerant and low energy consumption

Patented Airflow Control

Fan controlled in 10% increments

Interior (wxdxh)

37″ x 20.5″ x 55.7
940mm x 520mm x 1415mm

Exterior (wxdxh)

45.7″ x 31.1″ x 75.2″
1160mm x 790mm x 1910mm

Weight

Net: 485lbs / 220kg

# of shelf guides
(2.8" minimum spacing)

19 guides / 2 shelves included

Useable Shelf Area

36.2″ x 19.1″
920mm x 485mm

Max Load Per Shelf

110.2lbs / 50kg

Electrical

115V 50/60Hz
230V 50/60Hz

Regulatory Labels

CE, UL, CSA listed

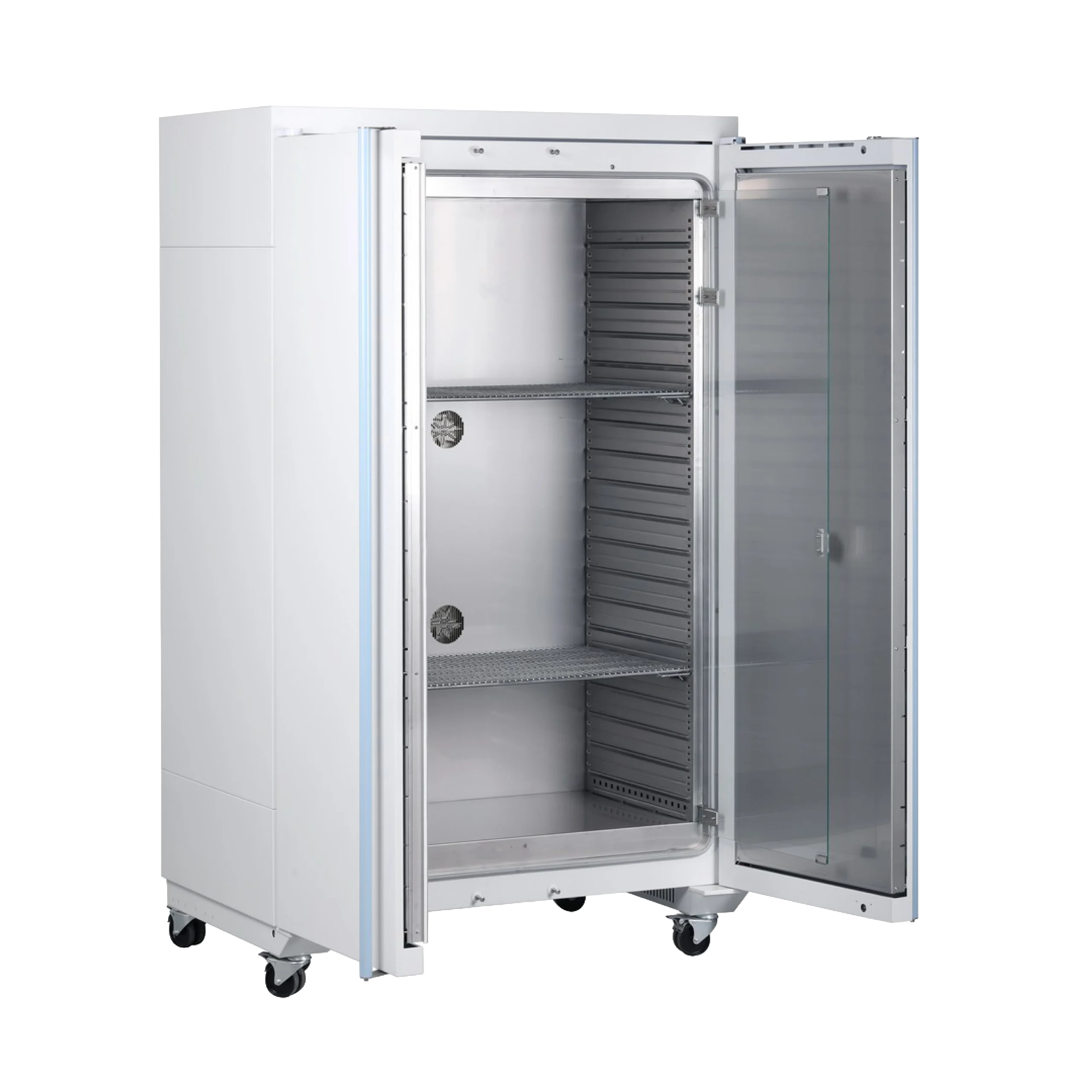

Chamber Construction

Pharmaceutical-Grade Stainless Steel

The Friocell ECO Peltier is constructed with a pharmaceutical-grade AISI 304 stainless steel chamber packed with 5 layers of insulation for improved durability, temperature uniformity, and operating efficiency. The inner chamber is seamless with rounded corners and fully removable for easier cleaning and sterilization. The chamber door is equipped with a patented 4-point closing system that seals the door to the chamber gasket and enables hands-free opening and closing.

AISI 304 stainless steel chamber – 316L stainless steel option available

Removable inner chamber with seamless, rounded corner design for easier cleaning and sterilization.

Shelf brackets that do not penetrate the chamber walls – brackets are molded into the inner chamber walls 2.8″ apart.

4-point closing system that seals the door to the chamber gasket – automatic or key door lock options availabe, door sensor and alarm option available.

Double wall chamber construction with 5 layers of insulation for more uniform internal chamber conditions.

(2″) 50 mm stainless steel port – (1″) 25mm, (2″) 50mm, (4″) 100mm access port options available.

Inner glass door(s) allows viewing into the chamber without affecting internal conditions

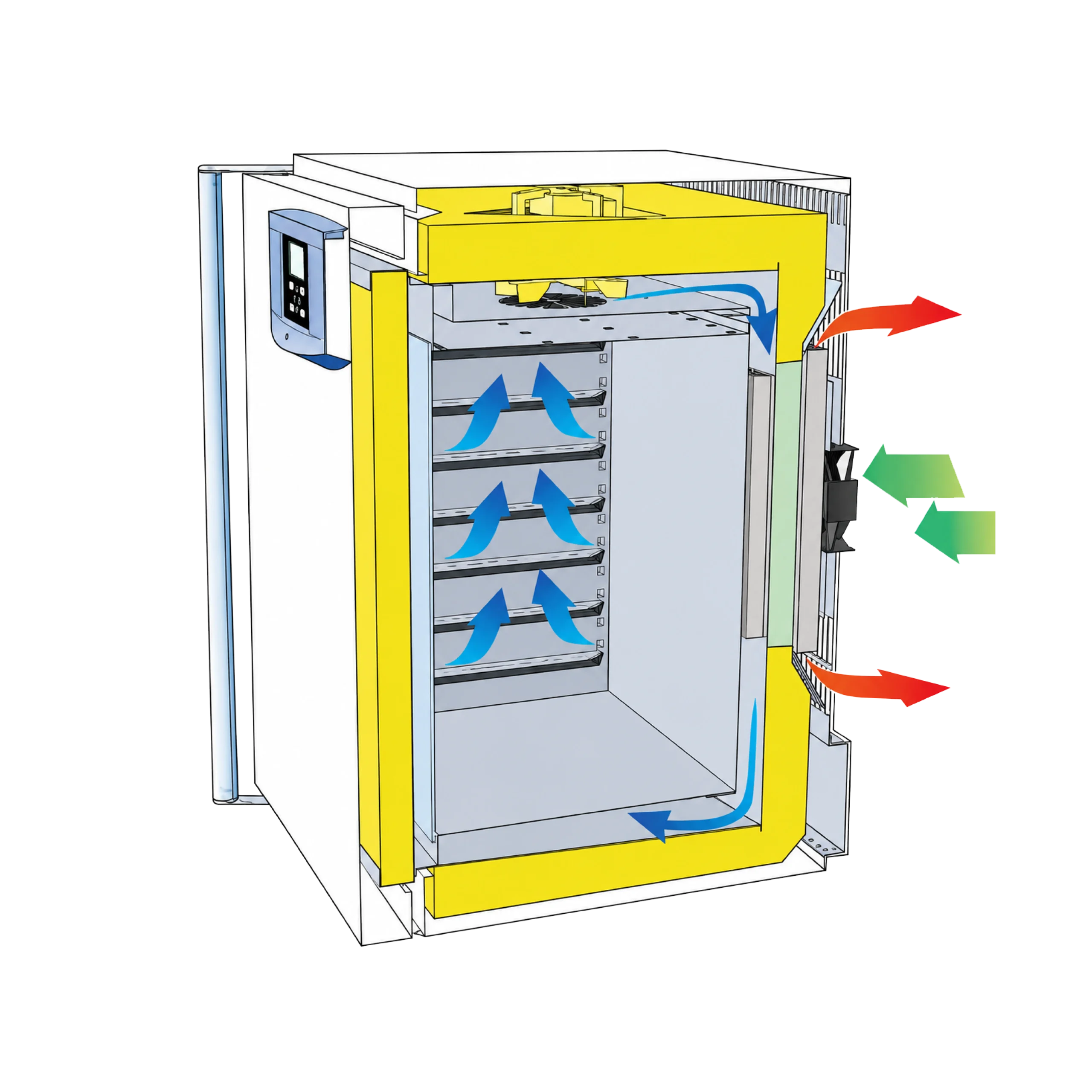

Heat Technology

Patented Forced Air Convection

Our patented force air convection system produces simultaneous vertical and horizontal airflow for precise temperature uniformity and rapid heating and cooling times. The process of heating from the bottom of the chamber to the top simulates natural airflow, allowing for a more accurate replication of climate conditions.

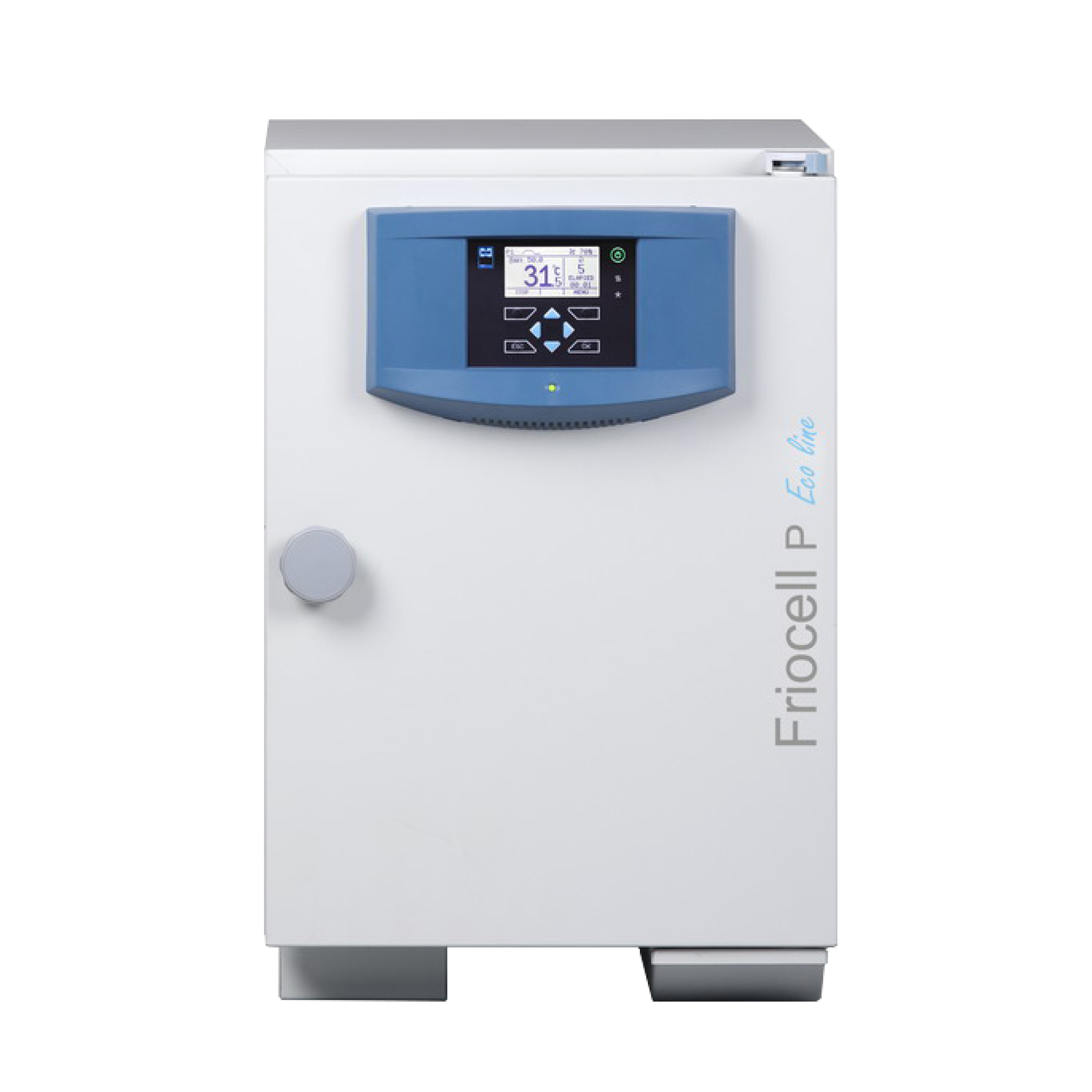

Control System

Precise & Automated Control of Cycle Parameters

The ECO digital controller is programmed with fuzzy logic, which analyzes cycle data in real-time and automatically adjusts inputs to maintain stable conditions. This allows for rapid heating and cooling times without overshooting the temperature setpoint, protecting the load and reducing the cycle duration, recovery time, and power consumption. The 3” LCD screen provides a clear display of the cycle status and temperature data with wide-angle vision for easy viewing during operation. ECO controllers can run up to 99 cycles with capacity for 9 programs, each containing 2 segments for varying loads and parameters.

ECO

Standard Digital Controller

3″ LCD display

Fuzzy logic enabled microprocessor

9 programs / 2 segments each for varying loads and parameters up to 99 cycles

Real-time programming & cycling – optional temperature ramping settings

Optional Ethernet port

Delayed heating start & stop function

Digital safety thermostat

Acoustic and digital alarms

Optional integrated data logger for temperature measurement and recording

Constant monitoring of chamber conditions

USB & RS 232 port

Keypad lock

Optional Equipment

Shelving

Stainless steel perforated shelf

Stainless steel grated wire shelf

Construction

Automatic key and door lock

AISI 304 or 316 stainless steel exterior

Waterproof 115V or 230V electrical socket installed inside the chamber

Adjustable feet or casters with smooth travel and extendable leveling feet

Door sensor and alarm

PT 100 flexible temperature sensor

Rolling cart with casters (swiveling/locking and swiveling/leveling) for 22, 55, 111, 222 models

Stainless stacking frame for model 111 & 222

AISI 316 stainless steel chamber

1″ (25mm) / 2″ (50mm) / 4″ (100mm) access port

Functiontality

USB drive, 30-day data logging: 22, 55 ,111 models

External printer

Ethernet port

Compliance

IQ/OQ protocols with 9pt. or 27pt. temperature mapping – DIN 12880

Region specific electrical plug

Warmcomm software – FDA CFR 12 Part 11 compliant

BMS contacts (24V, 1A)
