Electric Pure & Clean Steam Generators

Electrically Heated Steam

Overview

BMT USA’s Electric Pure and Clean Steam Generators are designed and built to cGMP guidelines and provide tight clean steam pressure control within +/- 2 PSIG of the set point. Electric steam generators can be ordered as standalone units or built directly into a BMT USA sterilizer for a fully integrated solution. The units are available in capacities ranging from 50 up to 1,000+ lbs/hr with a wide range of additional options to further enhance functionality and to comply with your local pressure codes.

Available Options

Sanitary feed water piping with sanitary components and connections
Automatic drain valve for prolong shut down
Allen-Bradley or Siemens PLC control system
Stainless steel sanitary feed water booster pump system
Electropolishing of the vessel and piping
Steam separator for pure steam demands
Steam conductivity monitoring and recording
Feed water conductivity monitoring and recording
Pressure vessels available in pressure codes for most regions or countries
Voltage change for different regions or countries
Block and bleed valve arrangement to drain feed line when fed with USP or WFI feed water

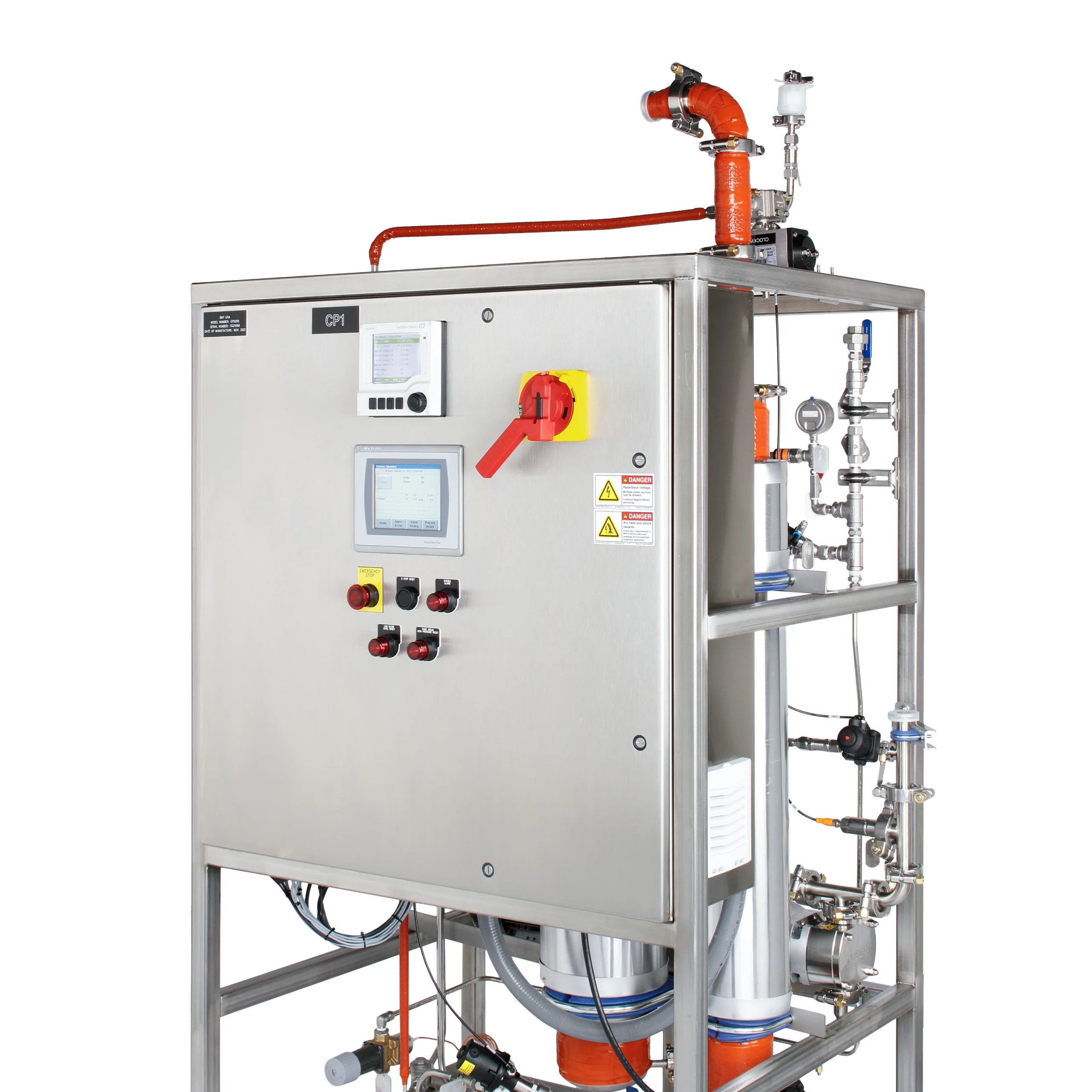

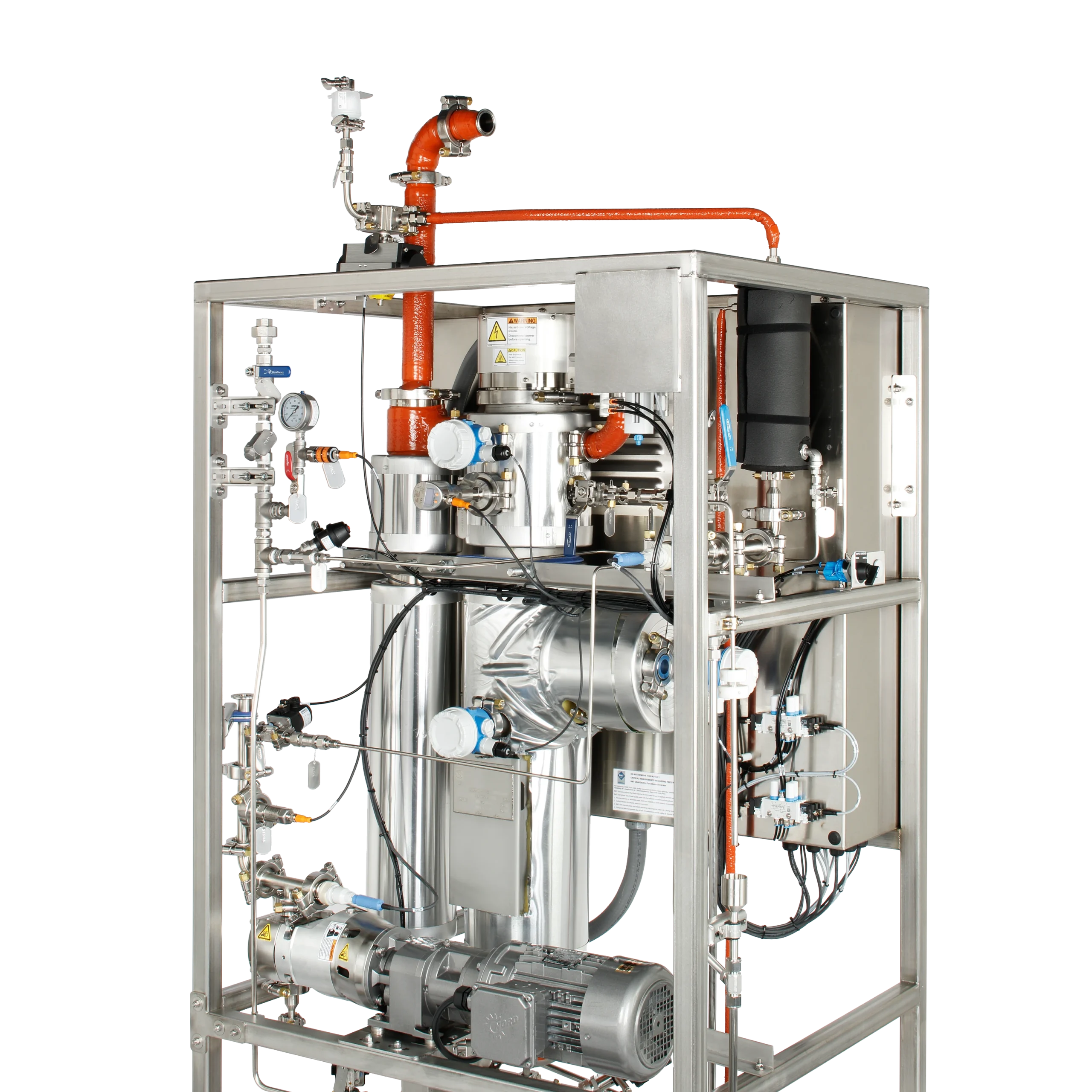

Electric Clean Steam Generator

Electric Steam Generator Brochure

cGMP Steam Generators

Sanitary Construction

BMT USA’s Electric Pure and Clean Steam Generators are built with non-proprietary components and are equipped with sanitary ASME pressure vessels made from 316L stainless steel. All connections on the vessel including the heating elements are sanitary and sloped drain. Piping in contact with feed water and clean steam is 316L with sanitary components and connections. The heating elements are made from 316L stainless steel for long service life. 3-phase voltage assures fast heat up and recovery – voltages can be specified at time of order. The units are also equipped with an automatic timed blow-down system that carries any impurities to drain.

Pure Steam

For applications that require pure steam, the generator is equipped with a pyrogen separation device installed at the outlet of the evaporator. The pyrogen separator is designed to direct the steam in a rigorous path where any impurities or remaining moisture is stripped off and lead to drain. When condensed the Pure Steam will meet Water-for-Injection standards.

Control System

Each steam generator is equipped with industrial-grade Allen Bradley or Siemens PLC-based control systems. The systems utilize touch screen operator interfaces and can also be equipped with an optional secondary HMI panel for remote operation of the unit. Other optional capabilities, such as monitoring of the steam & feed water quality or pressure can also be added to the systems. In addition, a recorder can be added to provide a permanent record.

Food & Beverage Applications

Chemical Free Keg Decontamination for Beer Brewers

Don't let chemicals or dirty plant steam continue to be an extra ingredient in your product

Brewers across the United States are discovering the benefits of using clean steam generators to decontaminate their beer kegs before being refilled with product. BMT USA’s electric steam generators can be installed directly on the refilling line for a chemical-free keg decontamination solution. The generators are designed to control the clean steam outlet pressure within +/- 2 PSIG from the user-selected set point, assuring our clients always have the proper steam temperature at their keg throughout the sterilization process.
BMT USA Steam Generator on a Beer Keg Filling line utilizing clean steam for sterilization

Delivering Solutions To Some Of The Industry's Most Prominent Breweries:

Electric Steam Generator Sizes

BMT USA electric steam generators are available in a wide range of capacities. The examples below are only a sample of the models we offer. Custom dimensions and capacities are also available to match your specific requirements.
Electrically heated models lbs/hr at up to 80 PSIG output pressure:

Model

lbs/hr @ 80 PSIG

ECSG 50

lbs/hr @ 80 PSIG

50
ECSG 100

lbs/hr @ 80 PSIG

100
ECSG 150

lbs/hr @ 80 PSIG

150
ECSG 200

lbs/hr @ 80 PSIG

200
ECSG 250

lbs/hr @ 80 PSIG

250
ECSG 300

lbs/hr @ 80 PSIG

300
ECSG 350

lbs/hr @ 80 PSIG

350
ECSG 400

lbs/hr @ 80 PSIG

400
ECSG 500

lbs/hr @ 80 PSIG

500
ECSG 800

lbs/hr @ 80 PSIG

800
ECSG 1000

lbs/hr @ 80 PSIG

1000
