Venticell ^{ECO & EVO}

Patented Forced Air Convection Ovens

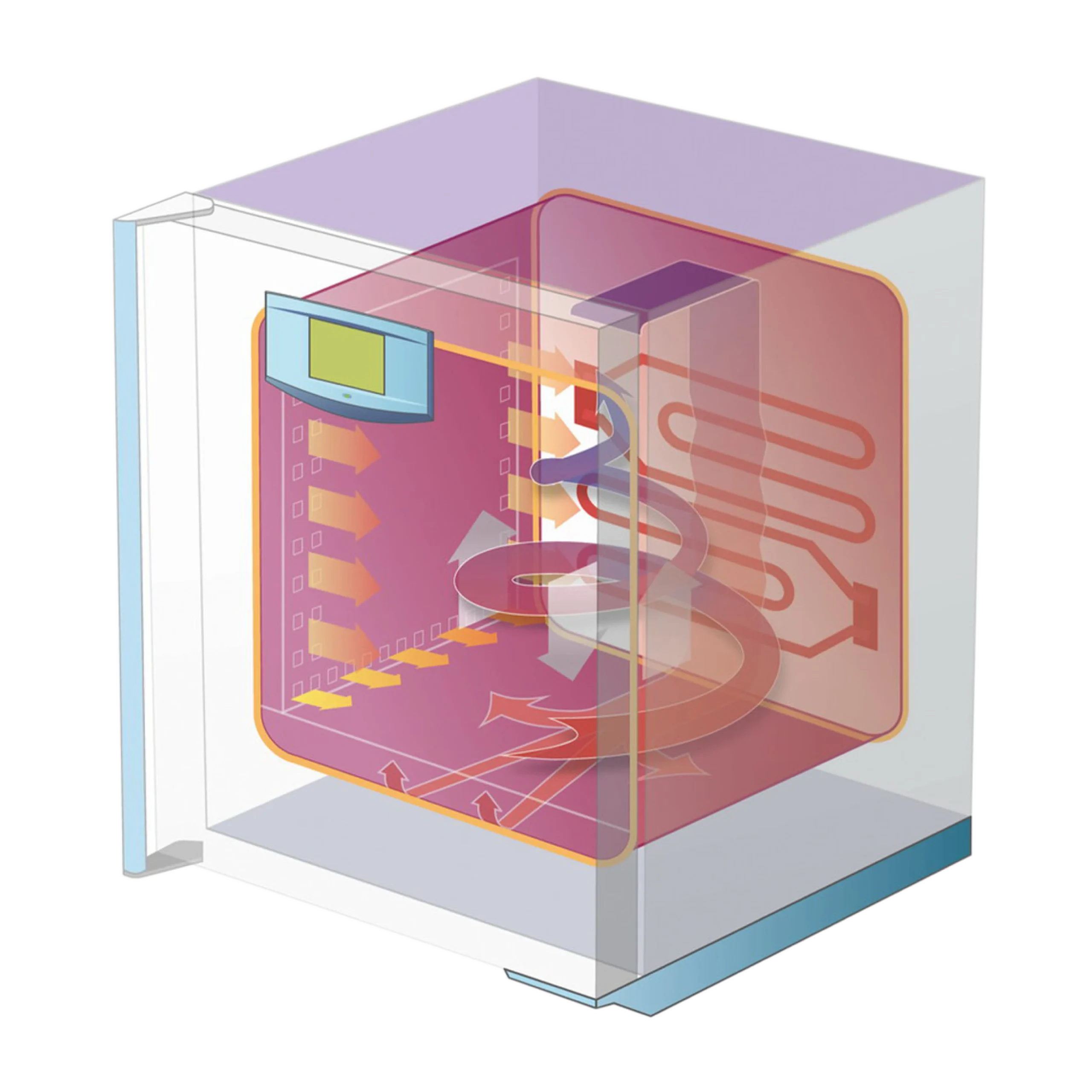

Venticell dry heat ovens utilize a patented forced air convection system to move air vertically and horizontally within the chamber for precise temperature uniformity. The Fuzzy Logic enabled digital controller ensures repeatable cycles and precise temperature control without overshooting the set point. Venticell dry heat ovens are ideal for sterilizing glassware and devices, drying wet media, and material testing.

Technical Specifications

Working Temperatures

10°C above ambient up to 250°C
(300°C max temp. option available)

Heat Technology

Patented Forced Air Convection System

Chamber Volumes

22 (0.8 ft³) • 55 (2 ft³) • 111 (4 ft³) • 222 (8 ft³) • 404 (14.3 ft³) • 707 (25 ft³) • 1212 (43 ft³)

Chamber Construction

AISI 304 stainless steel chamber with seamless, rounded corner design – 316L stainless steel chamber option available

Control System

Fuzzy Logic enabled ECO digital controller or upgraded EVO advanced digital controller

Electrical Data

115V 50/60Hz: Model 22, 55, 111, 222
230V 50/60Hz: Model 222, 404, 707, 1212

Regulatory Labels

CE, UL, CSA listed

Device Features & Optional Equipment

Pharmaceutical-Grade Stainless Steel Chamber

Venticell forced air convection ovens are equipped with a pharmaceutical grade AISI 304 stainless steel chamber with a double wall construction to prolong life expectancy. The inner chamber features a seamless, rounded corner design and is fully removable for easier cleaning and sterilization. The door of the chamber employs a patented 4-point closing system that seals the door to the chamber gasket and enables hands-free opening and closing.

AISI 304 stainless steel chamber – 316L stainless steel option available.

Double wall chamber construction with 5 layers of insulation for more uniform internal chamber conditions.

Removable inner chamber with seamless, rounded corner design for easier cleaning and sterilization.

(2″) 50 mm stainless steel port – (1″) 25, (2″) 50, (4″) 100 mm access port options available.

Shelf brackets that do not penetrate the chamber walls – brackets are molded into the inner chamber walls 2.8″ apart.

4-point closing system that seals the door to the chamber gasket – automatic or key door lock options availabe, door sensor and alarm option available.

Precise & Automated Control of Cycle Parameters

BMT devices are standard equipped with the ECO digital controller and can be upgraded to the advanced EVO digital controller for expanded functionality and features. Both the ECO and EVO controllers utilize fuzzy logic to assess process data, including operation temperature, chamber size, and other controlled elements. Based on the assessed data, the controller can make continuous adjustments to input values, such as heating intensity or cooling, to optimally regulate internal chamber conditions. With the goal of minimizing the time required to meet set process parameters, devices equipped with either the ECO or EVO controller can quickly ramp up to the exact temperature set point without overshooting. The result is reduced overall cycle time, power consumption, and recovery times after opening the chamber door(s).

ECO

Standard Digital Controller

EVO

Advanced Digital Controller

3″ LCD display

5.7″ color touchscreen – glove friendly operation

Fuzzy logic enabled microprocessor

9 programs each with up to 2 segments for varying loads and parameters up to 99 cycles

100 programs each with up to 100 segments for varying loads and parameters with unlimited cycles

Real-time programming and cycling – optional temperature ramping settings

Real-time programming and cycling with temperature ramping settings included

Constant monitoring of chamber conditions

Graphic display of cycle parameters

USB port

USB port & SD card slot with Microsoft Excel formatted data storage

RS 232 port

Optional Ethernet port

Optional Ethernet port & WiFi connectivity

Delayed heating start & stop function

Digital safety thermostat

Acoustic and digital alarms

Optional integrated data logger for temperature measurement and recording

Integrated data logger – FDA CFR 21 Part 11

Keypad lock

Remote Access

Multi-level secure user authentication – FDA CFR 21 Part 11 compliant

DIN 12880 digital safety thermostat

EVO

Advanced Digital Controller

5.7″ color touchscreen – glove friendly operation

Fuzzy logic enabled microprocessor

100 programs each with up to 100 segments for varying loads and parameters with unlimited cycles

Real-time programming and cycling with temperature ramping settings included

Constant monitoring of chamber conditions

Graphic display of cycle parameters

USB port & SD card slot with Microsoft Excel formatted data storage

RS 232 port

Optional Ethernet port & WiFi connectivity

Delayed heating start & stop function

Digital safety thermostat

Acoustic and digital alarms

Integrated data logger – FDA CFR 21 Part 11

Remote Access

Multi-level secure user authentication – FDA CFR 21 Part 11 compliant

DIN 12880 digital safety thermostat

2-Door Pass-Through Clean Room Models

** 2-door pass-through models include all features from standard Venticell models with the following additions:

Sterilization Cycle

Preset hot air sterilization cycle

Chamber Volumes

222 (8 ft³) • 404 (14.3 ft³)

Filtration

HEPA Filters
Particle-free modification to prevent contamination

Exterior Additions

AISI 304 Stainless steel exterior
Door locks

Control System Additions

Clean-side controller interface
Over-pressure modification with digital or analog gauge over-pressure readout

Optional Equipment for Enhanced Functionality & Compliance

Shelving

Stainless steel perforated shelf

Stainless steel grated wire shelf

Construction

Automatic key and door lock

316L stainless steel chamber

Adjustable feet or casters with smooth travel and extendable leveling feet

Rolling cart with casters (swiveling/locking and swiveling/leveling)

Waterproof 115V electrical socket installed inside the chamber

Door sensor and alarm

HEPA filter for air inlet

Window with 3 layers of insulating glass for observation of samples inside the chamber

Stainless stacking frame for model 111 & 222

AISI 304 stainless steel exterior

PT 100 flexible sensor

Interior light – heat resistant with mechanical switch or an electronic switch that is automatically activated when the door opens

Exhaust port for connection to external exhaust system

Compliance

IQ/OQ validation documentation with temperature mapping

Region specific electrical plug

Warmcomm software – FDA CFR 12 Part 11 compliant

Building management monitoring system
