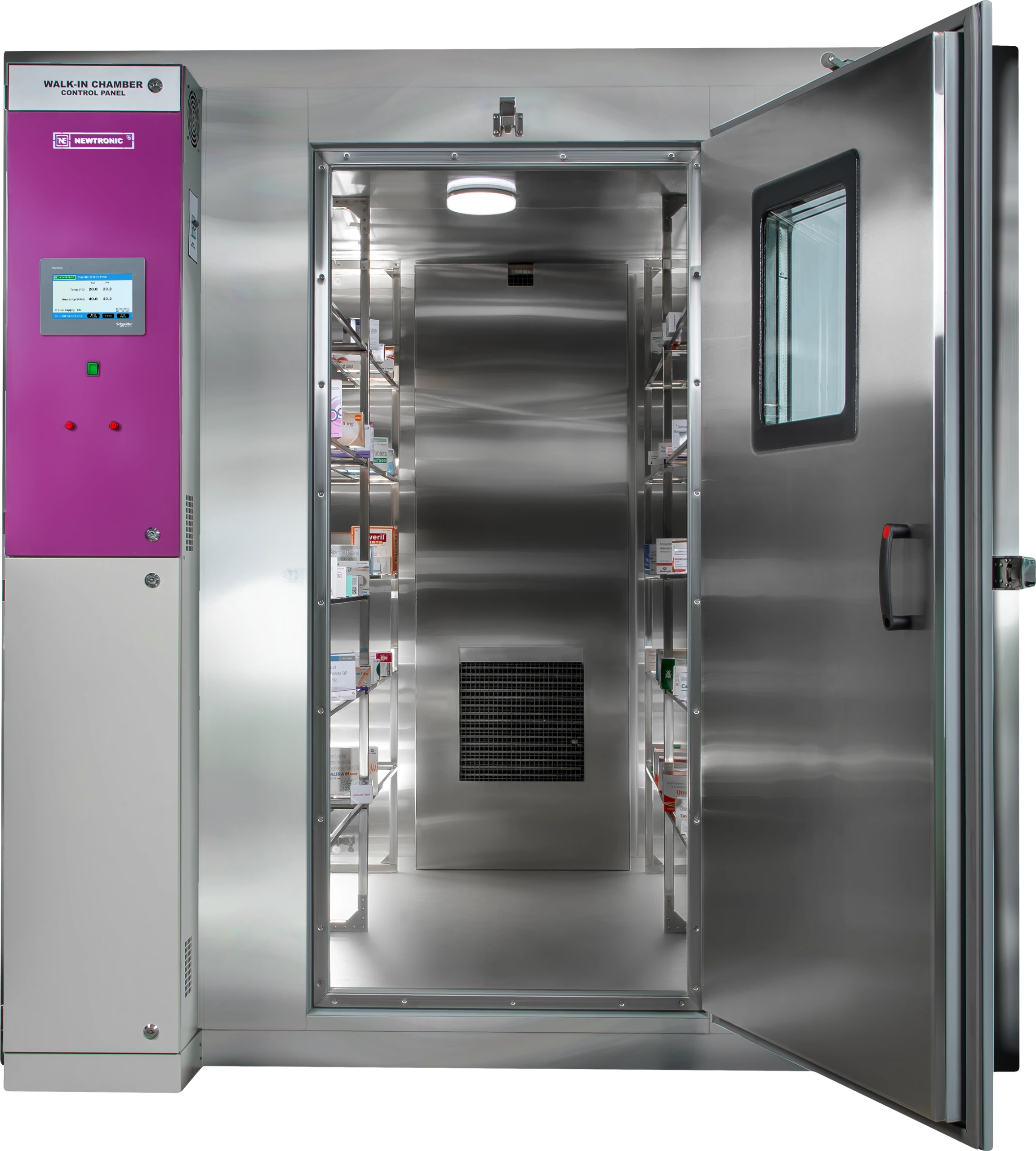

Walk-In Stability Chambers
Purpose-built for large-scale stability studies
Newtronic walk-in stability chambers support high-volume stability studies with smooth, uniform airflow and consistent temperature distribution throughout the interior. With custom configurations to meet your facility’s specific requirements, the chambers integrate seamlessly into your laboratory space and deliver dependable performance under demanding conditions.
Product Overview
Designed to deliver confidence at every stage of large-scale stability testing, Newtronic Walk-in Stability Chambers provide precise temperature control from 20°C to 60°C and controlled humidity from 40% RH to 95% RH to maintain the conditions required for reliable studies. A PLC-based control system supports dependable performance in every cycle, while integrated alarms help safeguard both samples and operators. With support for 21 CFR Part 11 compliance, Newtronic walk-in chambers also help simplify documentation and data management requirements in regulated environments.
Custom Sizes & Configurations
tailored to your facility, workflow, and study capacity requirements.
Precise Temperature Control
from 20°C to 60°C with accuracy of ±0.5°C and uniformity of ±1.0°C to support stable, repeatable test conditions.
Controlled Humidity
from 40% RH up to 95% RH to maintain the environmental consistency required for long-term stability studies.
CFC-Free Cooling System
featuring a hermetically sealed compressor, evaporator coil, condenser, and standby cooling system to protect samples if the primary system fails.
Integrated Safety Protections
prevent temperature or humidity overshoot while also safeguarding operators from hazardous conditions.
PLC Control System
provides dependable operation with repeatable performance with controls through a 7″ color touch screen interface.
Multi-Channel Alerts
with audible, visual, mobile, and email notifications for critical deviations and system events.
Ethernet Connectivity
for fast data transfer and seamless integration with site networks and reporting systems.
21 CFR Part 11
compliant software with daily data backup, alarm logs, audit trails, data trending, and PDF export.
Comprehensive Documentation
including IQ/OQ, calibration certificates, operating and maintenance manuals, material test certificates, and electrical drawings.
Built for Stable Performance
Durable walk-in chamber construction designed to protect study conditions and support long-term reliability.
Newtronic walk-in stability chambers are engineered for the demands of regulated pharmaceutical and laboratory environments, where construction quality directly affects performance. With 304 stainless steel interior and exterior walls, the chamber provides a durable, easy-to-clean surface built for long service life. Double-walled 60 mm PUF insulated modular panels support thermal stability and efficient operation, while simplifying on-site installation.
Thoughtful design details, including a heated door line to minimize condensation, a built-in observation window for convenient monitoring, and a PVC strip curtain to reduce temperature leakage, help protect chamber conditions during daily use. U-shaped stainless steel tubular heaters contribute to dependable, uniform heating for stable, repeatable results.
304 stainless steel exterior and interior walls.
Double walled with 60mm PUF insulated modular panels with easy on-site assembly.
Heater line along the door to avoid condensation.
Observation window – 450 x 300 mm.
Illuminated interior
PVC strip curtain for reducing temperature leakages.
U-shaped stainless steel tubular heaters.
Technical Specifications
Heat Technology:
Forced air circulation
Temperature Range:
20°C up to 60°C
Temperature Accuracy:
±0.5°C
Temperature Uniformity:
±1°C
Humidity Range:
40% RH up to 95% RH
Humidity Accuracy:
±2% RH
Humidity Uniformity:
±3% RH
Model Selection Guide
Model
Capacity
cu. ft. (liters)
Internal Dimensions
h x w x d (mm)
External Dimensions
h x w x d (mm)
Tray Qty.
Tray Dimensions
w x d (mm)
NLWH208SI
208 (5,848)
78.7″ x 53.5″: x 84.7″
(2000 x 1360 x 2150)
83.5″ x 58.3″ x 89.4″
(2120 x 1480 x 2270)
20
35.4″ x 11.8″ (900 x 300)
NLWH250SI
250 (7,017)
94.5″ x 53.5″ x 84.7″
(2400 x 1360 x 2150)
99.2″ x 58.3″ x 89.4″
(2520 x 1480 x 2270)
28
35.4″ x 11.8″ (900 x 300)
NLWH307SU
307 (8,600)
78.7″ x 78.7″ x 84.7″
(2000 x 2000 x 2150)
83.5″ x 83.5″ x 89.4″
(2120 x 2120 x 2270)
20
35.4″ x 23.6″ (900 x 600)
NLWH368SU1
368 (10,320)
94.5″ x 78.7″ x 84.7″
(2400 x 2000 x 2150)
99.2″ x 83.5″ x 89.4″
(2520 x 2120 x 2270)
28
35.4″ x 23.6″ (900 x 600)
NLWH543SU
543 (15,216)
94.5″ x 78.7″ x 124.8″
(2400 x 2000 x 3170)
99.2″ x 83.5″ x 129.5″
(2520 x 2120 x 3290)
42
35.4″ x 23.6″ (900 x 600)
NLWH679SU
679 (19,020)
94.5″ x 98.4″ x 124.8″
(2400 x 2500 x 3170)
99.2″ x 103.1″ x 129.5″
(2520 x 2620 x 3290)
42
35.4″ x 31.5″ (900 x 800)
NLWH1092SU1
1092 (30,600)
94.5″ x 98.4″ x 200.8″
(2400 x 2500 x 5100)
99.2″ x 103.1″ x 205.5″
(2520 x 2620 x 5220)
70
35.4″ x 23.6″ (900 x 800)
NLWH1787SU1
1787 (50,040)
118.1″ x 157.5″ x 164.2″
(3000 x 4000 x 4170)
122.8″ x 162.2″ x 168.9″
(3120 x 4120 x 4290)
126
35.4″ x 31.5″ (900 x 800)
NLWH2857SU
2857 (80,019)
118.1″ x 200.8″ x 205.9″
(3000 x 5100 x 5230)
122.8″ x 205.5″ x 210.6″
(3120 x 5220 x 5350)
162
35.4″ x 23.6″ (900 x 800)
Ready to Plan Your Walk-In Chamber?
From initial planning to final specification, our team can help you move your project forward.
