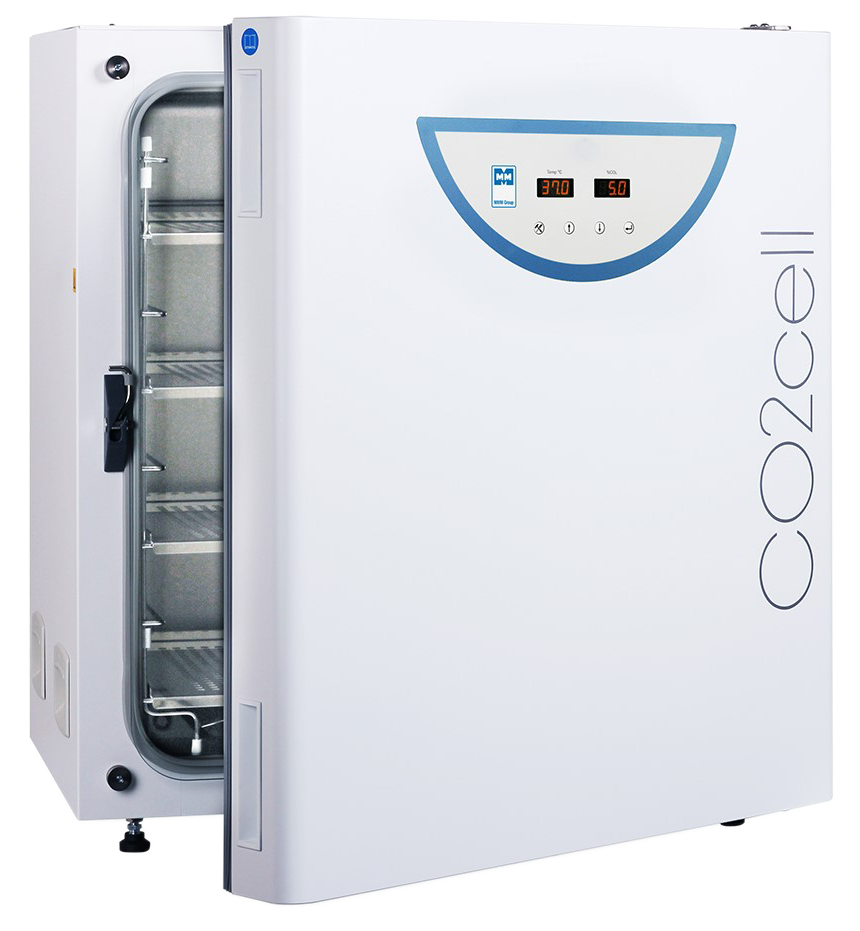

CO2cell Standard

3-Circuit Fanless Direct Heat System

CO2cell incubators create constant and reproducible conditions for cell and tissue culture growth. The 3-circuit direct heating system operates without a fan, significantly reducing vibration and the risk of cross-contamination. A precise CO2 infrared sensor with high stability provides reliable and accurate measurements. A sealed inner glass door allows for inspecting samples without affecting conditions within the chamber.

Contact Us
Download Technical Sheet

Model Specifications

CO2cell 50: Standard

Working Temperatures

Ambient + 5°C up to 60°C
  • Optional 160°C sterilization cycle

Heat Technology

3-circuit direct heat system

Chamber Volume

50L / (1.8 ft³)

Controlled Humidity

Up to 90% RH, ±5% @ 37°C

CO2 Control

0.1% up to 20%
  • Controlled in 1% increments
  • Equipped with Vaisala drift-free infrared (IR) CO2 sensor

Control System

Standard controller

Interior (wxdxh)

15.8″ x 11.8″ x 15.8″
402mm x 300mm x 402mm

Exterior (wxdxh)

21″ x 18.1″ x 28.2″
534mm x 460mm x 717mm

Weight

Net: 83.8lbs / 38kg

# of shelf guides
(2.8" minimum spacing)

3 guides / 3 shelves included

Useable Shelf Area

12.8″ x 9.8″
325mm x 249mm

Max Load Per Shelf

44.1lbs / 20kg

Electrical

115V 50/60Hz

Regulatory Labels

CE, UL, CSA listed

Vaisala Drift-Free Infrared CO2 Sensor

Vaisala drift free infrared CO2 sensors provide accurate carbon dioxide measurements to ensure samples are always incubating at the correct concentration levels. The sensor does not require any additional auto-referencing or zeroing to prevent drifting of the CO2 calibration.

Key benefits of a fanless incubator

Easy cleaning

Fewer components, smooth interior surfaces, and the lack of airflow simplifies cleaning, significantly reducing the risk of contamination.

Gentle Airflow

The direct heat system eliminates all airflow inside the chamber that may otherwise spread contaminates.

Zero Vibration

Promotes cell growth by eliminating vibrations that may disrupt the initial attachment of cells to the culture vessel and lead to irregular growth patterns.

Protects Against Evaporation

Minimizes water loss due to evaporation – protecting samples from possible desiccation and edge effect.

Increased Useable Space

Significant space is saved by eliminating the need for ducting or HEPA filters for fans.

Low Maintenance

No fan maintenance or HEPA filter replacement required.

Chamber Construction

Pharmaceutical-Grade Stainless Steel

CO2cell standard incubators are constructed with a seamless pharmaceutical-grade AISI 304 stainless steel chamber with rounded corners for easier cleaning and sterilization. The chamber door is equipped with a patented 4-point closing system that seals the door to the chamber gasket and enables hands-free opening and closing. A heated inner glass door eliminates condensation and allow for viewing samples without affecting conditions within the chamber.
  • AISI 304 stainless steel chamber
  • Optional compartmentalized inner glass doors 50L chambers: 4 compartment doors; 190L chambers: 8 compartment doors.
  • Heated inner glass door eliminates condensation.
  • 4-point closing system that seals the door to the chamber gasket.
  • Exterior painted with anti-microbial paint
  • Stainless steel water tray
  • (1″) 25 mm stainless steel port.

Heat Technology

3-Circuit Fanless Direct Heat System

The 3-circuit fanless direct heat system uniformly generates heat from all six sides of the chamber—door, ceiling, floor, sides, and back—creating a precisely controlled environment with gentle airflow and no vibration or condensation, significantly reducing the risk of cross-contamination.

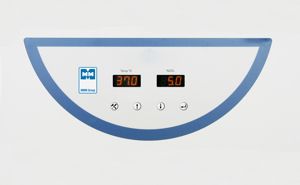

C02cell Standard Controller

Precise Control of Cycle Parameters

  • (2) LED number displays
  • Continuous indication of actual temperature and CO2 concentration
  • Audio and visual alarm
  • Programmable infrared drift-free CO2 sensor
  • Independent safety thermostat

Optional Equipment

Shelving
  • Stainless steel perforated shelf
  • Stainless steel grated wire shelf
Exterior, Chamber & Doors
  • Automatic key and door lock
  • Door sensor and alarm
  • Rolling cart with casters (swiveling/locking and swiveling/leveling)
  • Stacking kit and thermal barrier for stacking two units
  • AISI 304 or 316 stainless steel exterior
  • Adjustable feet or casters with smooth travel and extendable leveling feet
Climate & CO2 Regulation
  • Automatic CO2 tank change over kit
  • CO2 in-line pressure regulator
  • Two-stage CO2 regulator
  • 160°C sterilization cycle
  • Humidity display
Data, Communications & Compliance
  • IQ/OQ protocols with 9pt. or 27pt. temperature mapping – DIN 12880
  • Region specific electrical plug
  • Warmcomm software – FDA CFR 12 Part 11 compliant
  • Ethernet port
  • BMS contacts (24V, 1A)
